Grub Screw Connector Thru Tubing Tools For Coiled Tubing Tools String
Contact Person : LEE
Phone Number : 86-13659253658
WhatsApp : +8613659253658
| Minimum Order Quantity : | 1 set | Price : | USD 1-10000/set |
|---|---|---|---|
| Packaging Details : | Pollywood | Delivery Time : | 30-50 days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 10 set/month |
| Place of Origin: | China | Brand Name: | ZZ TOP OIL TOOLS |
|---|---|---|---|
| Certification: | ISO, API | Model Number: | Motorhead Assembly |
|
Detail Information |
|||
| Product: | Motorhead Assembly | Application: | Oil Well CT Operation |
|---|---|---|---|
| Usage: | Coiled Tubing Tool String | Material: | Alloy Steel |
| Size: | 1 3/4" - 3 1/8" | Connection: | AMMT, PAC |
| Working Condition: | Oil & Gas & H2S Service | Delivery: | 20-30 Days |
| Highlight: | MHA CT Tools,Coiled Tubing Service CT Tools,Motor Head Assembly CT Tools |
||
Product Description

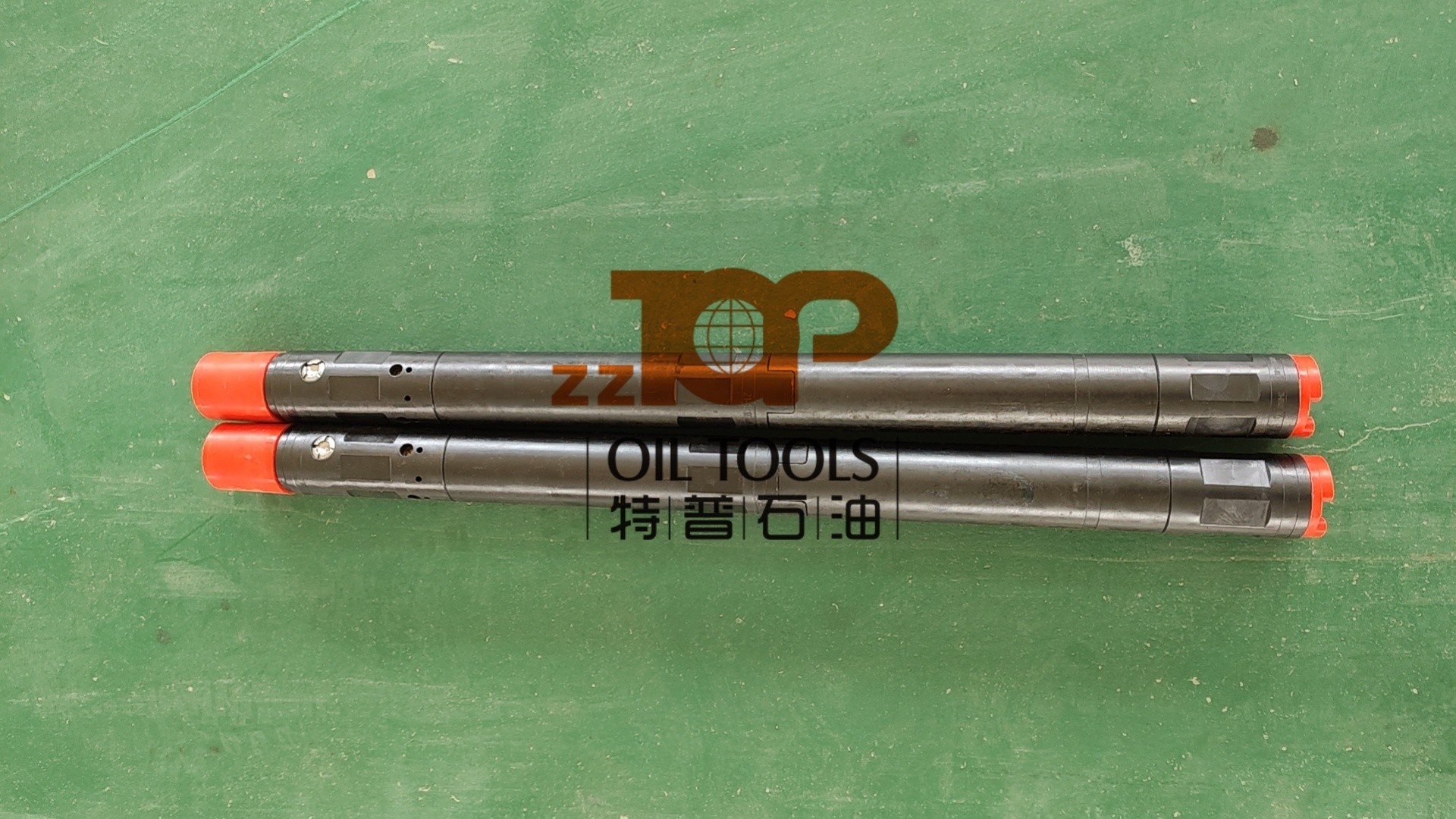

Motor Head Assembly (MHA) For Coiled Tubing Service CT Tools
The Motorhead Assembly(MHA) is a single tool that combines CT connector, Double flapper check valve, Release joint and circulation valve all in one package. The MHA tool length is shorter than the individual tools make up are, and there are fewer connection to fail.
Technical Parameter of 2.125" Motorhead Assy.
| HIGH PRESSURE MOTORHEAD ASSEMBLY(MHA)Complete with Single Piece Double Flapper CheckValves, Hydraulic Disconnect and a Dual Circulation Sub | |
| OD | 2.125" |
| ID | 0.562" |
| Fish neck | used 2"GS pulling tools to engage fish neck1.38”internal |
| Connection | 1 1/2”AM MTP in and Box |
| Disconnect drop ball | 0.750” |
| Circulating drop ball | 0.625" |
| Temperature range | -20/200 oC |
| Working pressure | 10,000 pai |
| Testing pressure | 12,000 psi |
| Working condition | Service H2s |
