Coiled Tubing Service Big ID Motor Head Assembly CT Tools String

Minimum Order Quantity : 1 set Price : USD 1-10000/set
Packaging Details : Pollywood Delivery Time : 30-50 days
Payment Terms : L/C, T/T, D/P Supply Ability : 10 set/month
Place of Origin: China Brand Name: ZZ TOP OIL TOOLS
Certification: ISO, API Model Number: Heavy Duty Motorhead Assembly

Detail Information

Product: Heavy Duty Motorhead Assembly Application: Oil Well CT Operation
Usage: Coiled Tubing Tool String Material: Alloy Steel
Size: 1 3/4" - 3 1/8" Connection: AMMT, PAC
Working Condition: Oil & Gas & H2S Service Delivery: 20-30 Days
High Light:

Coiled Tubing motor head assembly


big ID motor head assembly


Oil Well Coiled Tubing Service

Product Description

Coiled Tubing Service Big ID Motor Head Assembly CT Tools String

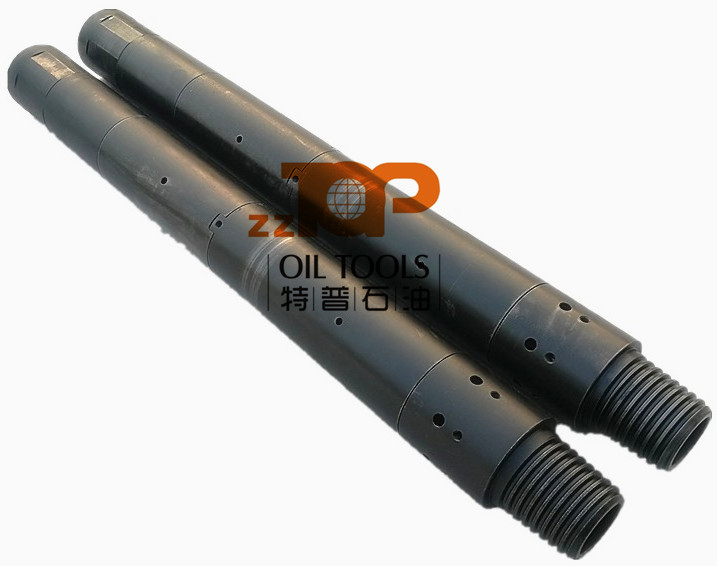

The Motorhead Assembly for coiled tubing service consists of Big ID Flapper Check Valve, Big ID Hydraulic Disconnect and the Burst Disc Circulation Valve. Compared to conventional individual components, the ID increased approximately by 40% and the big ID motorheady assembly is specially designed for non-heavy duty operations, such as sand washing, clean-out and gas lifting, etc.


The standard configuration consists of the maximum flow through bore while maintaining maximum tensile strength in the motorhead assembly. By interchanging the piston sleeve, the drop/trip ball size can be varied to suit the desired tool string requirements. This is a particularly useful feature when the hydraulic disconnect is situated below jars and intensifiers and ID restrictions are a considering factor. Running the heavy duty hydraulic disconnect below jars and intensifiers ensures that if disconnection of the toolstring is necessary, a greater proportion of the tool string is safely returned to surface.

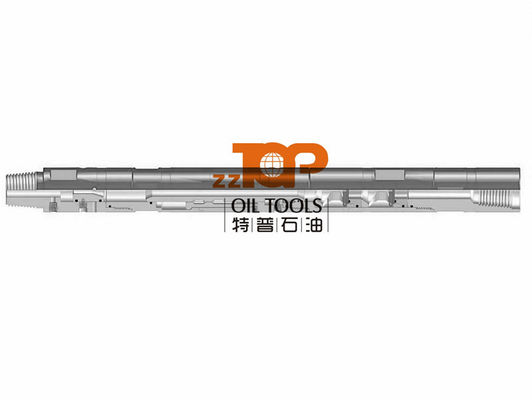

Bill of Material For Motorhead Assembly



Item Description Qty
1 Dimple Sub- External slip connector 1
2 Slip 1
3 Bearing 1
4 Set Screw-External slip connector 4
5 Nipple 1
6 O Ring 2
7 O Ring 1
8 Flapper Housing-DFCV 1
9 Flapper Assembl-DFCV 2
10 Spring-DFCV 1
11 Flapper body-DFCV 2
12 Upper release sup-Disconnect 1
13 Release piston-Disconnect 1
14 Drop Ball-Disconnect 1
15 Fish neck/Body-Disconnect 1
16 Collet slip-Disconnect 1
17 Collect Sleeve-Disconnect 1
18 Hex Socket set screw-Disconnect 1
19 Shear pin with shear collar assy-Disconnect 10
20 Circulation valve body 2
21 Rupture disc( Ordered additional) 1
22 Shear pin-Circulation Valve 6
23 Drop Ball-Circulation Valve 1
24 Flapper-Double flapper Check valve 2
25 Flapper Spring-DFCV 1
26 Flapper Pin shaft 2
27 O Ring 2


Coiled Tubing Service Big ID Motor Head Assembly CT Tools String 0Coiled Tubing Service Big ID Motor Head Assembly CT Tools String 1
