Manual Tool Trap Hydraulic Trap For Wellhead Pressure Control Equipment Alloy Steel
Contact Person : LEE
Phone Number : 86-13659253658
WhatsApp : +8613659253658
| Minimum Order Quantity : | 1 set | Price : | USD 1-10000/set |
|---|---|---|---|
| Packaging Details : | Pollywood | Delivery Time : | 30-50 days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 10 set/month |
| Place of Origin: | China | Brand Name: | ZZ TOP OIL TOOLS |
|---|---|---|---|
| Certification: | ISO, API | Model Number: | FPG14-70 |
|
Detail Information |
|||
| Product: | Lubricator | Material: | Alloy Steel |
|---|---|---|---|
| ID: | 3.0 Inch | Working Pressure: | 5000psi |
| Application: | Oil & Gas Well Wireline Operation | Usage: | Wireline Pressure Control Equipment |
| Working Condition: | Oil & Gas & H2S Service | Working Temperature: | Up To 425oF |
| High Light: | Oil Wellhead Pressure Control Equipment,Gas Wellhead Pressure Control Equipment,Integral wpce lubricator 3in |
||
Product Description

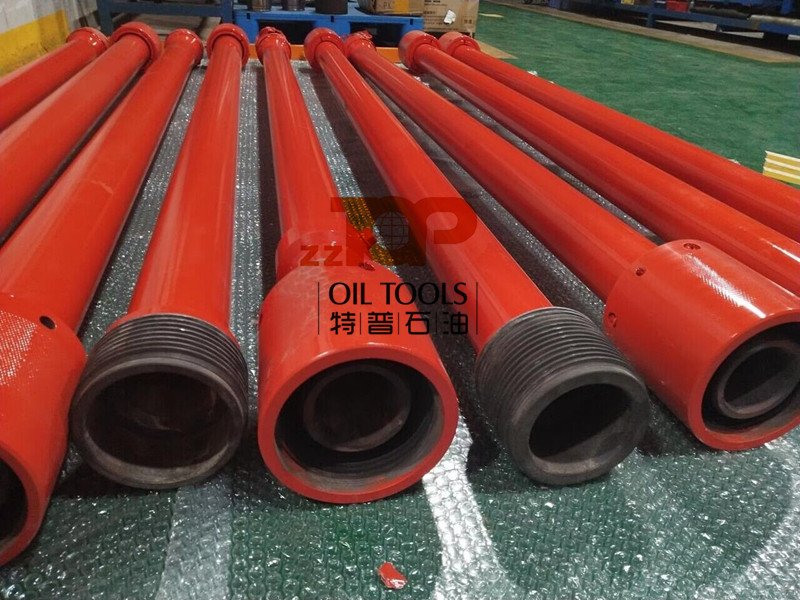

Lubricator For Wireline Pressure Control Equipment Alloy Steel
Integral Lubricator is the component of wireline pressure control equipment and serve as a vessel to provide passage for running wireline tool string into and out of the well under pressure. Normally position on top of wireline valve, lubricator comes in three section-upper, middle, lower; to provide adequate length for wireline tool string to be raised above wellhead, enabling the wireline valve to seal off pressure before and after wireline operations. This design features two1/2” NPT pressure relief ports which can be used to monitor and bleed off well pressure.
The single length determined by convenient for the site operation, there are 1m, 1.5m, 2m, 2.5m, 3m and so on various of specifications to chose.
Technical parameter of Lubricator
| Model | Working Pressure(Psi) |
ID(mm) | Connection | Service Environment |
Working Temperature |
| FPG 6-35 | 5000 | 62(65) | 41/4*-6SA | Crude oil,Water,Natural gaswith H2SSandCO2 | T-20(-29℃+121℃) |
| FPG 7-35 | 5000 | 76(78) | 5*-4ACME | ||
| FPG 10-35 | 5000 | 103 | 73/4*-5ACME | ||
| FPG 6-70 | 10000 | 62(65) | 43/4*--4ACME | ||
| FPG 7-70 | 10000 | 76(78) | 53/4*-4ACME | ||
| FPG 10-70 | 10000 | 103 | 83/8*-4ACME | ||
| FPG 7-105 | 15000 | 76(78) | 73/4*-4ACME | ||
| FPG 10-105 | 15000 | 103 | 91/2*-4ACME | ||
| FPG 6-70T | 10000 | 62(65) | 43/4*--4ACME | ||
| FPG 7-70T | 10000 | 76(78) | 53/4*-4ACME | ||
| FPG 10-70T | 10000 | 103 | 83/8*-4ACME |
