Manual Tool Trap Hydraulic Trap For Wellhead Pressure Control Equipment Alloy Steel
Contact Person : LEE
Phone Number : 86-13659253658
WhatsApp : +8613659253658
| Minimum Order Quantity : | 1 set | Price : | USD 1-10000/set |
|---|---|---|---|
| Packaging Details : | Pollywood | Delivery Time : | 30-50 days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 10 set/month |
| Place of Origin: | China | Brand Name: | ZZ TOP OIL TOOLS |
|---|---|---|---|
| Certification: | ISO, API | Model Number: | DLFP6-35 |
|
Detail Information |
|||
| Product: | Wireline Pressure Control Equipment | Material: | Alloy Steel |
|---|---|---|---|
| ID: | 3.0 Inch | Working Pressure: | 5000psi |
| Application: | Wireline Operation | Usage: | Wireline Pressure Control Equipment |
| Working Condition: | Oil & Gas & H2S Service | Working Temperature: | Up To 425oF |
| Highlight: | 3in wireline pressure control equipment,H2S wireline pressure control equipment,Wireline well control oil and gas |
||
Product Description
Oil & Gas Wellhead Wireline Pressure Control Equipment Assembly / WPCE
Wellhead Wireline Pressure Control Equipment is used for testing and paraffin treatment in flowing oil well, gas well, water injection well and coalbed methane testing. The unit supplies buffer and transitional area for string running with pressure to hole, could satisfy the wellhead seal requirement and there is no overflow. Simple operating, safe and reliable function. Working pressure is 10MPa, 21MPa, 35MPa, 70MPa and 105MPa. Standard ID is 30mm, 52mm, 62mm(65mm), 76mm(78mm), 89mm, 102mm(103mm), 120mm, 140mm, 160mm and 180mm. Our factory has the ability to design products to adapt to different environment according to clients ' requirements.

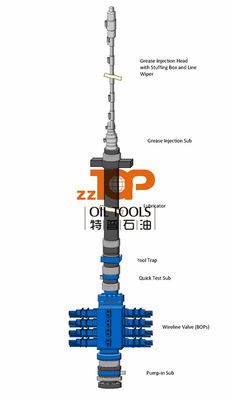

The whole Wellhead Wireline Pressure Control Equipment is composed of Grease Injection Control Head, Top Catcher, Lubricator, Bottom Catcher (include testing blowout assy), BOP, Pump-in Tee, Up sheave, Down sheave, Crossover Flange, Quick testing Assly, all kinds of pipes and other components which necessary.
Technical parameter of Wellhead Wireline Pressure Control Equipment
| Model | DLFP3-10 | DLFP3-21 | DLFP5-21 | DLFP6-35 | DLFP7-35 | DLFP8-35 | DLFP10-35 |
| Working Pressure Mpa | 10 | 21 | 21 | 35 | 35 | 35 | 35 |
| Lubricator ID mm | 32 | 32 | 52 | 62(65) | 76(78) | 89 | 102(103) |
| Cable ID mm | 5.6mm/8mm/11.8mm/12.7mm | ||||||
| Sealing Mode | Grease Injection sealing + rubber element sealing+stuffing | ||||||
| Service | Water, Crude oil, Natural gas with H2S and CO2 | ||||||
| Working Temperature | T-20(-29oC~+121oC) | ||||||
| Model | DLFP12-35 | DLFP16-35 | DLFP18-35 | DLFP22-35 | DLFP6-70 | DLFP7-70 | DLFP8-70 |
| Working Pressure Mpa | 35 | 35 | 35 | 35 | 70 | 70 | 70 |
| Lubricator ID mm | 120 | 140 | 160 | 180 | 220 | 62(65) | 76(78) |
| Cable ID mm | 5.6mm/8mm/11.8mm/12.7mm | ||||||
| Sealing Mode | Grease Injection sealing + rubber element sealing+stuffing | ||||||
| Service | Water, Crude oil, Natural gas with H2S and CO2 | ||||||
| Working Temperature | T-20(-29oC~+121oC) | ||||||
| Model | DLFP10-70 | DLFP12-70 | DLFP14-70 | DLFP16-70 | DLFP18-70 | DLFP7-105 | DLFP12-105 |
| Working Pressure Mpa | 70 | 70 | 70 | 70 | 70 | 105 | 105 |
| Lubricator ID mm | 102(103) | 120 | 140 | 160 | 180 | 76(78) | 120 |
| Cable ID mm | 5.6mm/8mm/11.8mm/12.7mm | ||||||
| Sealing Mode | Grease Injection sealing + rubber element sealing+stuffing | ||||||
| Service | Water, Crude oil, Natural gas with H2S and CO2 | ||||||
| Working Temperature | T-20(-29oC~+121oC) | ||||||
| Model | DLFP12-35 | DLFP16-35 | DLFP18-35 | DLFP22-35 | DLFP6-70 | DLFP7-70 | DLFP8-70 |
| Working Pressure Mpa | 35 | 35 | 35 | 35 | 70 | 70 | 70 |
| Lubricator ID mm | 120 | 140 | 160 | 180 | 220 | 62(65) | 76(78) |
| Cable ID mm | 5.6mm/8mm/11.8mm/12.7mm | ||||||
| Sealing Mode | Grease Injection sealing + rubber element sealing+stuffing | ||||||
| Service | Water, Crude oil, Natural gas with H2S and CO2 | ||||||
| Working Temperature | T-20(-29oC~+121oC) | ||||||
