Grease Injection Head Wellhead Pressure Control Equipment Hammer Union Connect

Minimum Order Quantity : 1 set Price : USD 1-10000/set
Packaging Details : Pollywood Delivery Time : 30-50 days
Payment Terms : L/C, T/T, D/P Supply Ability : 10 set/month
Place of Origin: China Brand Name: ZZ TOP OIL TOOLS
Certification: ISO, API Model Number: Grease Injection Control Head

Detail Information

Product: Grease Injection Control Head Material: Alloy Steel
Model: ZKT-105B Working Pressure: 15000psi
Application: Wireline Operation Usage: Wireline Pressure Control Equipment
Connection: Hammer Union Wokring Temp.: -29~121℃
High Light:

15000psi Wellhead Pressure Control Equipment

,

Alloy Steel Wellhead Pressure Control Equipment

,

15000psi grease injection head

Product Description

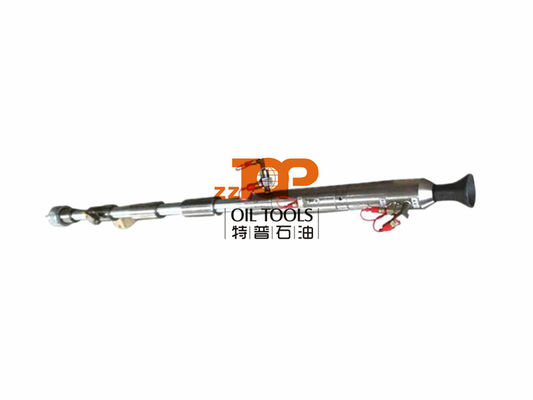

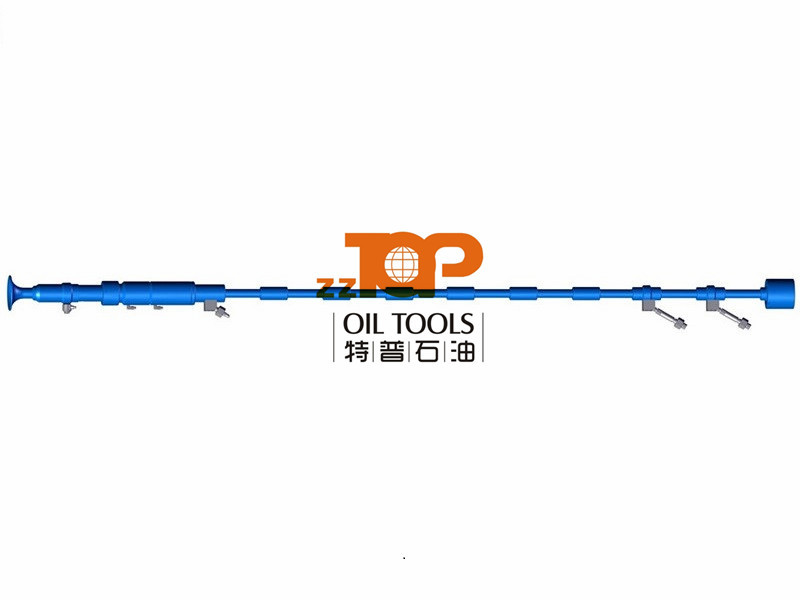

Grease Injection Control Head For Wireline Pressure Control Equipment



The Grease Injection Head is a part of wireline pressure control equipment. Grease Injection Head  is a sealing device and designed for use on braided cable wireline operation and designed to perform a wireline sealing function on braided cable. Positioned at the uppermost point of the pressure control equipment string, the Grease Injection Head comprises two major sub assemblies: the stuffing box or pack-off and the flow tube assembly.



The flow tubes are close tolerance fitting around the wireline. Along with the flow tube sleeves, they form the main length of thegrease injection control head. This length provides sufficient column height when in service to form an effective grease seal.In operation, the Grease Injection Head is assembled around the wireline before it is attached to the rope socket.



Technical parameter of Grease Injection Control Head



Thread

Seal

Diameter

Type

WP

(psi)

Flow

Tubes

Wire

Size

Service
4 3/4"-4ACME 3.750" B 5000 3/4/5

7/32"-

5/16"

STD
5"-4ACME 3.500" O 5000 3/4/5 STD
5 3/4"-4ACME 4.000" O 10000 3/4/5 H2S
6 1/2"-4ACME 4.750" O 5000 3/4/5 STD
8  3/8"-4ACME 5.250" O 10000 3/4/5 H2S

Grease Injection Head Wellhead Pressure Control Equipment Hammer Union Connect 0
