API Air Powered BOP Blowout Preventer Test Pump Unit For BOP Pressure Test

Minimum Order Quantity : 1 set Price : USD 1-10000/set
Packaging Details : Pollywood Delivery Time : 30-50 days
Payment Terms : L/C, T/T, D/P Supply Ability : 10 set/month
Place of Origin: China Brand Name: ZZ TOP OIL TOOLS
Certification: ISO, API Model Number: BOP Test Pump Unit

Detail Information

Product: BOP Test Pump Unit Material: Alloy Steel
Model: QY 140- AJ Working Pressure: 140 Mpa
Application: BOP Pressure Test Operated: Air Powered
High Light:

API BOP Blowout Preventer


140Mpa BOP Blowout Preventer


BOP test pump unit

Product Description

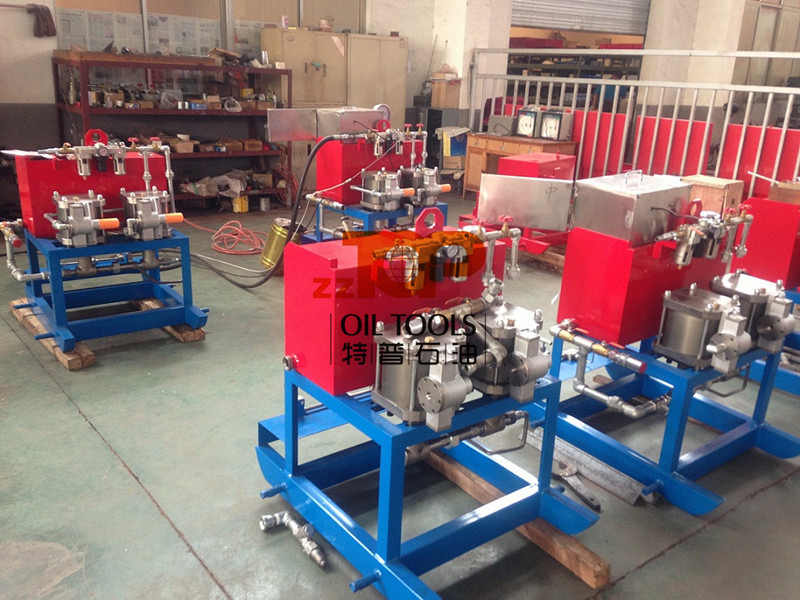

API Air Powered BOP Test Pump Unit For BOP Pressure Test QY Series


The Air-powered BOP Test Pump Unit compressed air as power source and uses air - powered pumps as pressure supply. Air source pressure is proportional to output hydraulic pressure. Corresponding hydraulic pressure to be tested can be obtained by adjusting air source pressure. When air source pressure and hydraulic pressure are in a state of balance. The air - powered pump will discontinue to apply pressure and output hydraulic pressure equal to preset pressure will be reached and become steady so that the rate of pressure rise can be controlled by controlling air input. Therefore, the test stand is characterized by explosion-proof performance, adjustable output pressure, controllable rate of pressure rise, small size, light weight, easy operation, reliable properties and extensive purposes. It is specially suitable to the high pressure tests and ultra-high pressure tests fro the pressure-containing equipments used in drilling and production projects in oilfields, such as blowout equipments, valves, pipelines, connector, pressure vessels, and so on, and also it is designed for use as test facilities in scientific research departments and inspection departments.


Technical parameter of Test Pump Unit





pump equipped

Air sour pressure

(maximum) Mpa

Working pressure

(Maximum) Mpa


rinting recorder

Weight (kg)

1:51 1PC

1:236 1PC




1 PC 310

1:51 2PC

1:236 2PC




1PC 400



API Air Powered BOP Blowout Preventer Test Pump Unit For BOP Pressure Test 0 API Air Powered BOP Blowout Preventer Test Pump Unit For BOP Pressure Test 1
