API Air Powered BOP Blowout Preventer Test Pump Unit For BOP Pressure Test
Contact Person : LEE
Phone Number : 86-13659253658
WhatsApp : +8613659253658
|Minimum Order Quantity :||1 set||Price :||USD 1-10000/set|
|Packaging Details :||Pollywood||Delivery Time :||30-50 days|
|Payment Terms :||L/C, T/T, D/P||Supply Ability :||10 set/month|
|Place of Origin:||China||Brand Name:||ZZ TOP OIL TOOLS|
|Certification:||ISO, API||Model Number:||RAM BOP with Drilling Spool|
|Product:||RAM BOP With Drilling Spool||Material:||Alloy Forged Steel|
|Size:||13 5/8" X 10M To 13 5/8" X 10M||Working Pressure:||10000psi|
|Application:||Wellhead Pressure Control||Usage:||Oil & Gas Well Drilling Operation|
|Working Condition:||Oil & Gas & H2S Service||Working Temperature:||P-U|
13 5/8" single ram bop,
10000psi single ram bop,
Drilling Spool bop blow out preventer

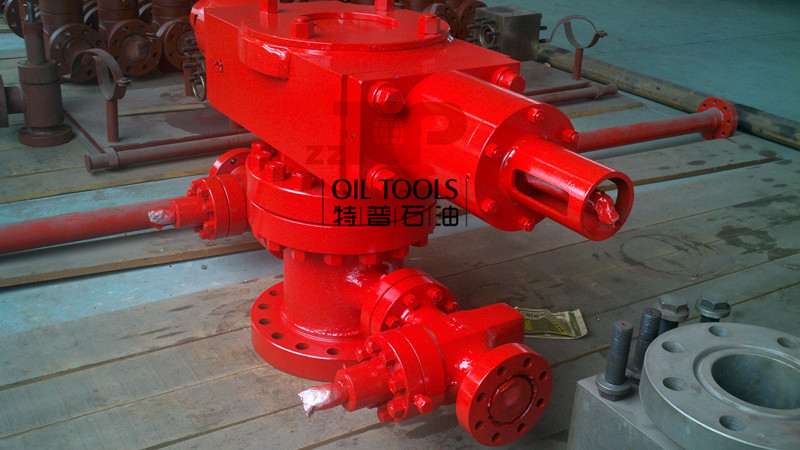

Single RAM BOP With Drilling Spool For Wellhead Pressure Control
Single RAM BOP with Drilling Spool is the part of well control equipment used in oil well drilling operation. The single RAM BOP with drilling spool is designed and manufactured according to API 16A
Features of RAM BOP
* Mode of Ram : Pipe rams, blind rams , variable bore ram and shear rams
* the bonnets is opened by hydraulic pressure.
* The outlets on the both sides of the body make the operation on site flexible.
* Type of locking system : the manual locking system and the automatic hydraulic locking system.
* The pressurized self-sealing sealing mechanism is used between the body and bonnets, so it’s not necessary to apply too much pre-tightening force to secure the reliability of sealing.
* it’s very convenient to lift and transport the BOP with the four lifting rods.
* The new sealing mechanism of ram shaft secures the sealing reliability under the high pressure.
* The ring grooves of flanges are all lined with the corrosion resistant alloy.
Features of Drilling Spool
* The spool is made of alloy steel and heat-treated. It is used on the oil and gas well which is with a pressure of less than 105Mpa.
* The spool applies to drilling high pressure oil and gas well, the connecting of the by passage of the spool with the valves and pipes will play not only a role of blowout and choking , but also a role of connecting the BOP with the wellhead.
Technical parameter of RAM BOP with Drilling spool
|MATERIAL||AA. BB. CC. DD. EE. FF|
|PERFORMANCE LEVEL||PR1, PR2|
|SPECIFICATION LEVER||PSL1, PSL2, PSL3|
|PACKING||PLYWOOD CASE OR BUYER REQUEST|
|MINIMUM ORDER||1 SET|
