API Air Powered BOP Blowout Preventer Test Pump Unit For BOP Pressure Test
Contact Person : LEE
Phone Number : 86-13659253658
WhatsApp : +8613659253658
| Minimum Order Quantity : | 1 set | Price : | USD 1-10000/set |
|---|---|---|---|
| Packaging Details : | Pollywood | Delivery Time : | 30-50 days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 10 set/month |
| Place of Origin: | China | Brand Name: | ZZ TOP OIL TOOLS |
|---|---|---|---|
| Certification: | ISO, API | Model Number: | Drilling Spool |
|
Detail Information |
|||
| Product: | Drilling Spool | Material: | Alloy Steel |
|---|---|---|---|
| Size: | 13 5/8" X 10M To 13 5/8" X 10M | Working Pressure: | 10000psi |
| Application: | Wellhead Pressure Control | Usage: | Oil & Gas Well Drilling Operation |
| Working Condition: | Oil & Gas & H2S Service | Working Temperature: | P-U |
| High Light: | Drilling bop spool,bop spool 10000psi,H2S Drilling Spool |
||
Product Description

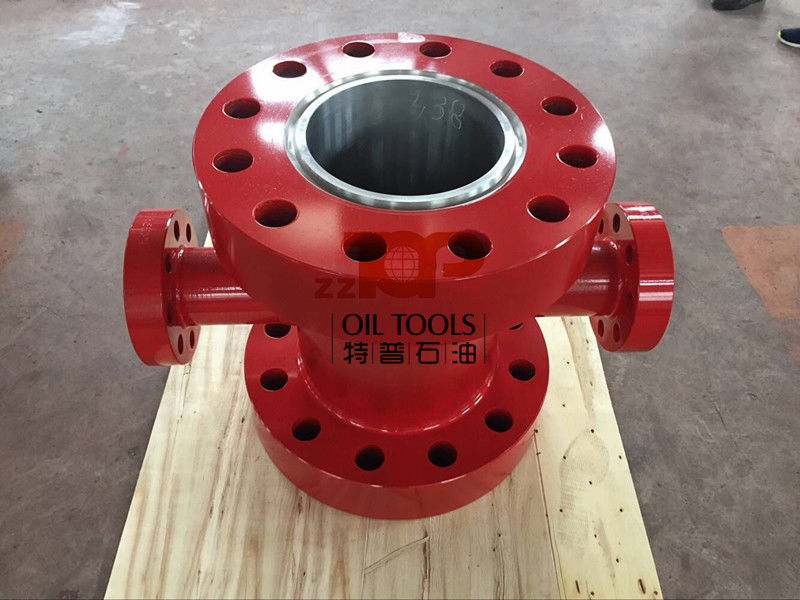

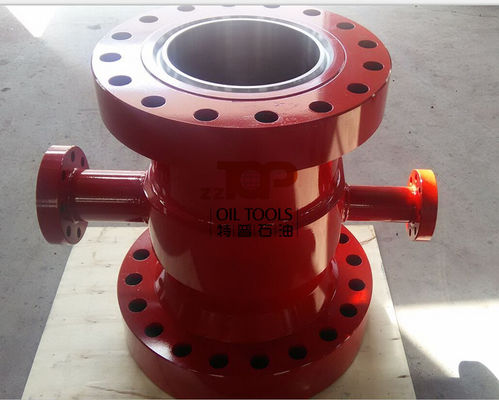

API 16A Drilling Spool Connected with BOP For Well Pressure Control
Drilling Spool are the parts of well control equipment, which are often used in the oilfield when drilling, Drilling spools are designed to allow safe circulation of mud. Drilling spools usually have the same nominal end connections and the same nominal side outlet connections.
The drilling spool is made of alloy steel and heat-treated. It is used on the oil and gas well which is with a pressure of less than 105Mpa. It is tested according to ((SY/T5053.1-2000 BOP and control equipment, BOP)) before shipping to be used safely. The drilling spool applies to drilling high pressure oil and gas well, the connecting of the by passage of the spool with the valves and pipes will play not only a role of blowout and choking , but also a role of connecting the BOP with the wellhead.
Technical parameter of Drilling Spool
| Drilling Spool | 18-35 | 18-70 | 18-105 | 28-35 | 28-70 | 28-105 |
| Nominal Diameter (mm) | Φ185 | Φ185 | Φ180 | Φ280 | Φ280 | Φ280 |
| Working Pressure (Mpa/psi) | 35/5,000 | 70/10,000 | 105/15,000 | 35/5,000 | 70/10,000 | 105/15,000 |
| Bypass Diameter (mm) | Φ103 | Φ103/Φ78 | Φ103/Φ78 | Φ103 | Φ103/Φ78 | Φ103/Φ78 |
| Top and Bottom Connection Flange | API 6B 18-35 R46 | API 6BX 18-70 BX156 | API 6BX 18-105 BX156 | API 6B 28-35 R46 | API 6BX 28-70 BX156 | API 6BX 28-105 BX156 |
| Side Connection Flange | API 6B 103-35 R39 | API 6BX 103-70 BX155 (Φ103) | API 6BX 103-105 BX155 (Φ103) | API 6B 103-35 R39 | API 6BX 103-70 BX155 (Φ103) | API 6BX 103-105 BX155 (Φ103) |
| API 6BX 78-70 BX155 (Φ78) | API 6BX 78-105 BX155 (Φ78) | API 6BX 78-70 BX155 (Φ78) | API 6BX 78-105 BX155 (Φ78) | |||
| Applicable Temperature (℃) | -29~+121 | 29~+121 | 29~+121 | -29~+121 | 29~+121 | 29~+121 |
