RTTS Packer Retrievable Packer High Pressure For Donwhole Testing

Minimum Order Quantity : 1 set Price : USD 1-10000/set
Packaging Details : Pollywood Delivery Time : 30-50 days
Payment Terms : L/C, T/T, D/P Supply Ability : 10 set/month
Place of Origin: China Brand Name: ZZ TOP OIL TOOLS
Certification: ISO, API Model Number: RTTS Packer

Detail Information

Product: RTTS Packer Material: Alloy Steel / Inconnel
Size: 13 5/8" Working Pressure: 10000psi
Application: Downhole Drill Stem Testing Connection: IF, EUE , CAS
Working Condition: Oil & Gas & H2S Service Working Temperature: Up To 425oF
High Light:

13 5/8" Retrievable Packer


Retrievable Packer High Pressure


rtts packer 10000psi

Product Description

Function of RTTS Packer



The Construction of the RTTS packer is shown in the accompanying figure. When starting the RTTS packer into the hole, place J-slot in the drag block sleeve in the locked position. The tool is run slightly below the desired setting position and is then picked up tool to setting position and rotated pipe several turns to right(on bottom, only 1/2 turn is required).Holding right torque in pipe, slack off the pipe weight until mechanical slips on the tool set and start taking weight .At the same time the packer element is compressed against the wall of the casing, then the packer can isolate the annular from the test zone. Self-guard hydraulic hold down mechanism can prevent the packer from bouncing up because of the high pressure below the packer. When it is extra, pressure can be into the annular space between the volume tube, hydraulic hold down body and the lower mandrel through the radial hole on the lower mandrel, then to reach the round hydraulic hold down slip and compress the slip retractor spring, then the round hydraulic hold down slip lean against the inside wall of the casing closely and help prevent the tool from being pumped up the hole.


Specification of 13 5/8" RTTS Packer


No Specifications 13 5/8"
1 Casing Weight Range(lb/ft) 135/8" 48-72lb/ft
2 Packer Ring OD 298.1mm
3 Top Shoe OD 303.1mm
4 Min. ID of tool 95.3mm
5 Length 2573mm
6 Pressure differential across the pacing ring 70MPa

Internal Yield Pressure strength

(Bursting pressure)


External Yield Pressure strength

(Collapse Pressure)

9 Tensile Strength(Yield) 1550KN
10 Torque Strength 126KN·m
11 Service environment Mud, Crude Oil, Natural gas with H2S and acid
12 Service temperature --29oC~+204oC
13 End connections 4 1/2" IF. BXP

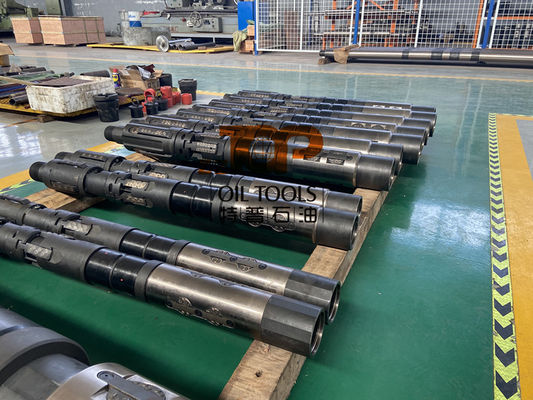

RTTS Packer Retrievable Packer High Pressure For Donwhole Testing 0
