Retrievable Mechanical Setting Packer 9 5/8" 20 Inch For Fracturing Operation

Minimum Order Quantity : 1 set Price : USD 1-10000/set
Packaging Details : Pollywood Delivery Time : 30-50 days
Payment Terms : L/C, T/T, D/P Supply Ability : 10 set/month
Place of Origin: China Brand Name: ZZ TOP OIL TOOLS
Certification: ISO, API Model Number: Retrievable packer

Detail Information

Product: Full Bore Retrievable Packer Material: Alloy Steel / Inconnel
Size: 4 1/2 Inch To 20 Inch Working Pressure: 10000psi
Application: Oil Well Fracturing Operation Connection: IF, EUE , CAS
Working Condition: Oil & Gas & H2S Service Working Temperature: Up To 425oF
High Light:

mechanical well packers 9 5/8"


mechanical well packers 10000psi


double grip packer 20 inch

Product Description

Mechanical Setting Retrievable Packer 9 5/8" For Fracturing Operation


The Mechanical Setting Packer is a full opening, hookwall type packer which can segregate bidirectional pressure. The retrievable packer can be applied for well testing, treating, squeeze cementing operations and fracturing service. The full opening of the retrievable packer permits pumping large volumes of fluid with a minimum pressure drop, and allows the passage of a through tubing type perforating gun. This helps make the tool usable for multiple operations with one trip in the hole-such as perforate, test, treat, squeeze, perforate, etc. Generally, the mechanical setting retrievable packer is composed of a packer body assembly and circulating valve assembly. It may also includes a safety joint.




Specifcation of 9 5/8" Retrievable Packer



No Specifications 9 5/8"
1 Casing Weight Range(lb/ft) 9 5/8" 40-71.8lb/ft
2 Packer Ring OD 195.1mm
3 Top Shoe OD 198.1mm
4 Min. ID of tool 76.2mm
5 Length 2088mm
6 Pressure differential across the pacing ring 70MPa

Internal Yield Pressure strength

(Bursting pressure)


External Yield Pressure strength

(Collapse Pressure)

9 Tensile Strength(Yield) 1557KN
10 Torque Strength 34KN·m
11 Service environment Mud, Crude Oil, Natural gas with H2S and acid
12 Service temperature --29oC~+204oC

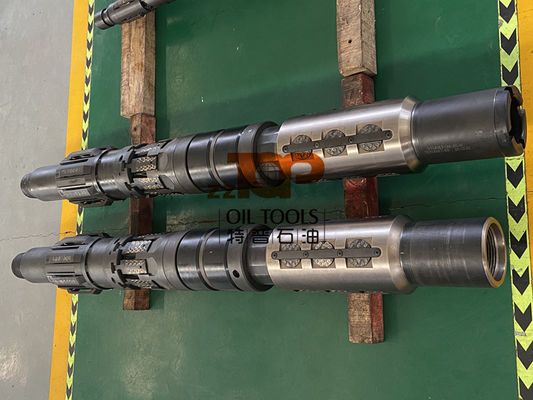

 Retrievable Mechanical Setting Packer 9 5/8" 20 Inch For Fracturing Operation 0  Retrievable Mechanical Setting Packer 9 5/8" 20 Inch For Fracturing Operation 1
