Hydraulic Set RH Packer Retrievable Packer For Well Completion Service 7500 Psi
Contact Person : LEE
Phone Number : 86-13659253658
WhatsApp : +8613659253658
| Minimum Order Quantity : | 1 set | Price : | USD 1-10000/set |
|---|---|---|---|
| Packaging Details : | Pollywood | Delivery Time : | 30-50 days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 10 set/month |
| Place of Origin: | China | Brand Name: | ZZ TOP OIL TOOLS |
|---|---|---|---|
| Certification: | ISO, API | Model Number: | Packer Parts |
|
Detail Information |
|||
| Product: | Redress Kit For RTTS Packer | Material: | Alloy Steel / Inconnel |
|---|---|---|---|
| Size: | 4 1/2 Inch To 20 Inch | Working Pressure: | 10000psi |
| Application: | Oil Well Fracturing Operation | Connection: | IF, EUE , CAS |
| Working Condition: | Oil & Gas & H2S Service | Working Temperature: | Up To 425oF |
| High Light: | 4 1/2 inch Retrievable Packer,20 inch Retrievable Packer,425oF redress kit |
||
Product Description

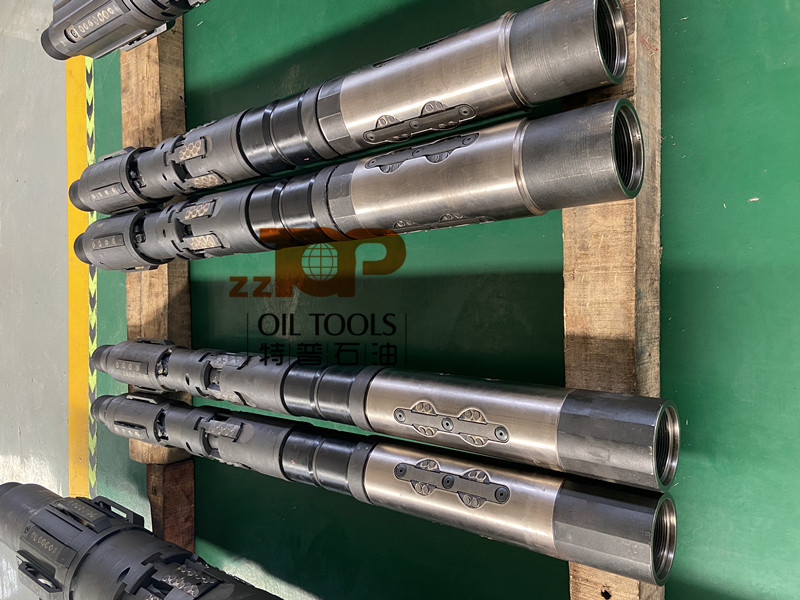

Retrievable Packer Parts Redress Kit for RTTS Packer Well Testing
The retrievable packer with mechanical setting is applied for cased hole drill stem testing, treating, squeeze cementing operations and fracturing service.
The Retrievable Packer includes packer body which includes a Auto J slot mechanism,mechanical slips, Packing elements and hydraulic slips, also equipped with the drag-block:
- The J slot mechanism in the drag block sleeve will in the locked position when starting the packer into the hole.
- The packer elements can be compressed and expanded against the wall of the casing, isolate the annular from the test zone.
- Hydraulic hold down mechanism round slips can lean against the inside wall of casing closely and help prevent the tool from being pumped up the cased hole.
Redress kit for 7" RTTS Packer
| No. | P.N. | Description |
| Redress Kit List(BC1FirstPO) | ||
| 1 | Redress kit for 7"RTTS packer, 70Mpa, 400F(Qty is for each set) | |
| 1.1 | 102115667-02.00 | Hydraulic SLip |
| 1.2 | 102115667-03 | Holding Strap |
| 1.3 | 102115667-04 | Hydraulic slip spring |
| 1.4 | 102115667-07b.04f | Packer Element, Viton Duro 90-90(7“23-29#) |
| 1.5 | 102115667-12.00 | Mechanical SLip |
| 1.6 | 102115667-13 | Screw |
| 1.7 | 102115667-15.00 | Drag Block |
| 1.8 | 102146667-22 | SLip insert bolt |
| 1.9 | 102146667-12 | SLip stoppin |
| 1.10 | 102146667-19 | Drag block Spring |
| 1.11 | 102146667-20 | Keeper |
| 1.12 | 2-334 | ORing, FK MD 90 |
| 1.13 | 2-330 | ORing, FK MD 90 |
| 1.14 | 2-339 | ORing, FK MD 90 |
| 1.15 | 2-231 | ORing, FK MD 90 |
| 1.16 | 2-233 | ORing, FK MD 90 |
| 1.17 | 2-338 | ORing, FK MD 90 |
| 1.18 | 2-240 | 0Ring, FK MD 90 for 31/2'IF Pin Thread |
