Packoff Swab Cup Assembly For Well Completion Operation In High Pressure

Minimum Order Quantity :	1 set	Price :	USD 1-1000/set
Packaging Details :	Pollywood	Delivery Time :	30-50 days
Payment Terms :	L/C,T/T,D/P	Supply Ability :	10 set/month

Place of Origin:	China	Brand Name:	ZZ TOP OIL TOOLS
Certification:	ISO, API	Model Number:	7" Retrievable Packer

Detail Information
Product:	Packoff Swab Cup	Material:	Alloy Steel
Size:	7 Inch	Working Pressure:	7500psi
Application:	Well Completion	Connection:	IF, EUE
Working Condition:	Oil & Gas & H2S Service	Working Temperature:	Up To 325oF

Product Description

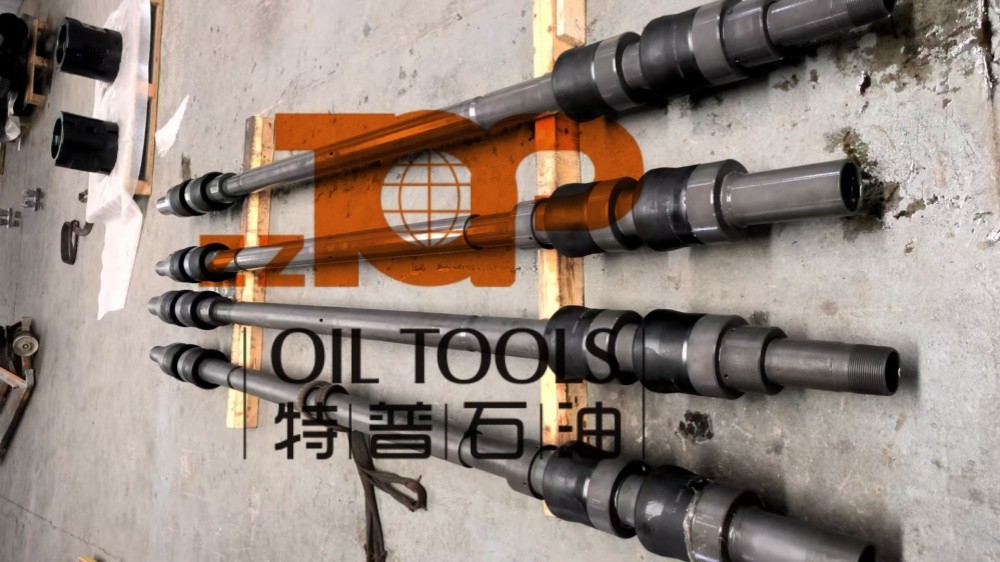

Packoff Swab Cup Assembly For Well Completion Operation In High Pressure

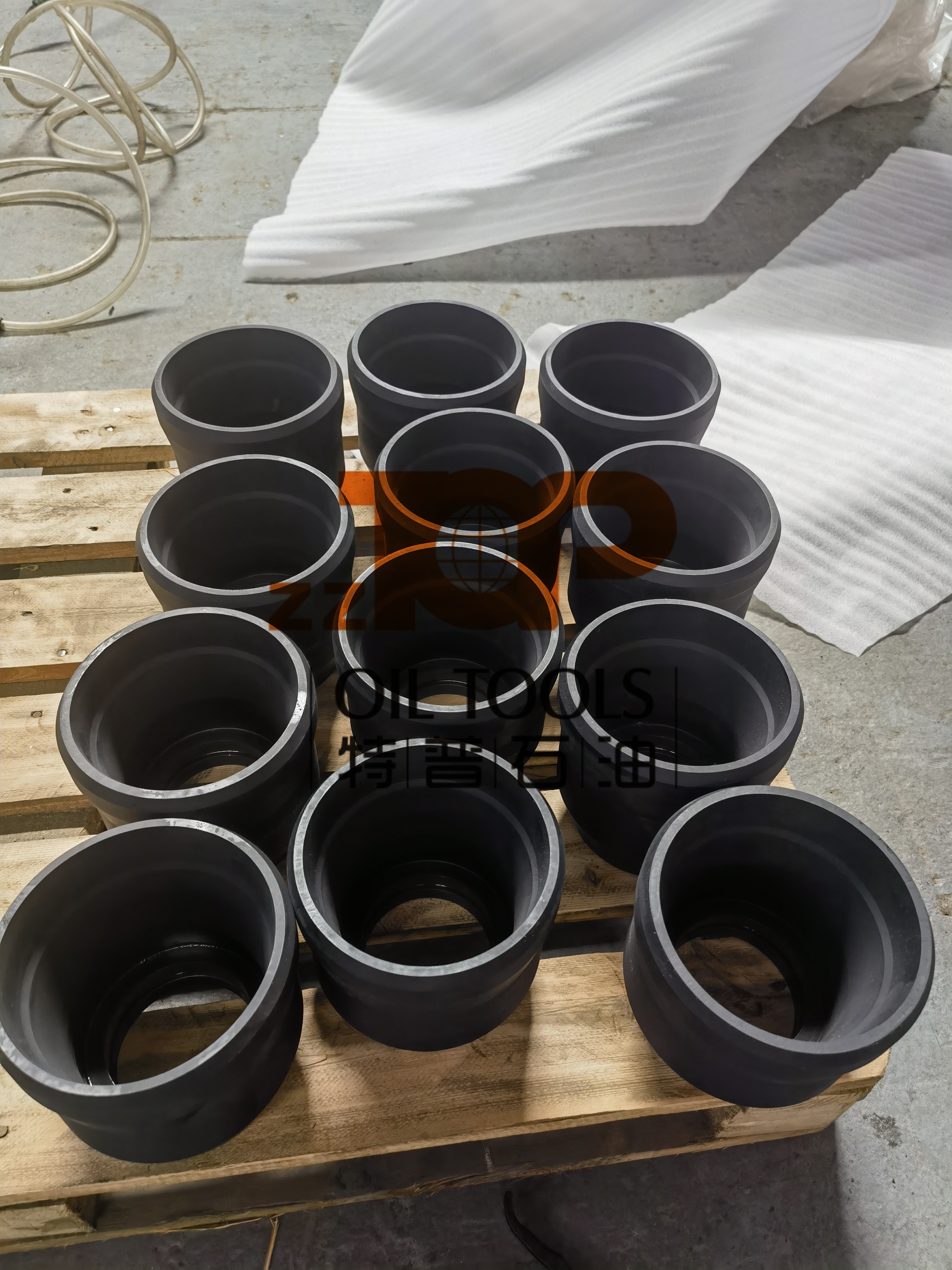

The swab cup assembly is a kind of packoff assembly to isolate pressure with packoff cups, which are assembled onto the body of the swab cub assembly. The cups can be run facing upward or downward. High-quality swab cups provide a reliable high-pressure seal against the
liner ID, and material of cup is usually HNBR, which is suitable for most environments.

Technical parameter

SWAB CUP,7" 23-26PPF, 4140-110 MYS, HNB
CASING SIZE	7 INCH
WEIGHT RANGE (POUND/FOOT)	23-26PPF
THIMBLE OD	6.080 INCH
MINIMUM ID	2.500 INCH
MATERIAL	4140-110 MYS ALLOY STEEL
CUP MATERIAL	HNBR
SERVICES	CO2/STD
TEMPERATURE RATING	-10 TO 325 DEGREE F
TOP CONNECTION	2 7/8 8RD EUE BOX
BOTTOM CONNECTION	2 7/8 8RD EUE PIN
TENSILE RATING	295KLBS
PRESSURE RATING	7,500 PSI
TEST FIXTURES	CASING,PLUGS
TEST PRESSURE	7,500 PSI
CONVEYANCE METHOD	TUBING

Packoff Swab Cup Assembly For Well Completion Operation In High Pressure 0
