Collet Catcher Sub / Ball Catcher Sub For Well Completion Operations

Name: Collet Catcher Sub / Ball Catcher Sub For Well Completion Operations
Brand: ZZ TOP OIL TOOLS
SKU: Ball Catcher Sub
Price: 1 USD
Availability: InStock
Rating: 4.6 (198 reviews)

Minimum Order Quantity :	1 set	Price :	USD 1-10000/set
Packaging Details :	Pollywood	Delivery Time :	30-50 days
Payment Terms :	L/C, T/T, D/P	Supply Ability :	10 set/month

Place of Origin:	China	Brand Name:	ZZ TOP OIL TOOLS
Certification:	ISO, API	Model Number:	Ball Catcher Sub

Detail Information
Product:	Catcher Sub	Application:	Oil & Gas Well Completion Operation
Usage:	Downhole Flow Control Component	Tubing Size:	2 7/8" & 3 1/2"
Working Pressure:	10000 Psi	Connection:	IF, EUE , CAS
Working Condition:	Oil & Gas & H2S Service	Working Temperature:	Up To 425oF
High Light:	Well Completion Operations Ball Catcher Sub , Well Completion Collet Catcher Sub , 10000 Psi Ball Catcher Sub

Product Description

Collet Catcher Sub / Ball Catcher Sub For Well Completion Operations

The Collet Catcher Sub is a kind of Ball Catcher Sub, which is for hydraulic-set packers are installed on the tubing to catch the seal ball that sets the packer. The catcher sub uses a ball to set and seal on a seat, after the packer is set, increased pressure forces the ball seat down unil the fingers snap back into s groove. The sub is then full opening, and the ball passed on down the tubing.

Features and Benefits:

The catcher sub can be applied to horizontal well completion or open hole well;
Elastic ball seat, the tool ID can be consistent with the standard tubing after being activated;
The working pressure of catcher sub can reach to10,000 psi
The catcher sub can connect with standard tubing.

Technical parameter of Ball catcher sub

Specification
Tubing size		Max.OD		ID(after shifting)
in	mm	in	mm	in	mm
2 7/8	73.03	3.307	84.00	1.700	43.18
		3.688	96.65
		3.937	100.00	2.417	61.40
3 1/2	89	4.500	114.30	2.540	64.52
				2.953	75.01

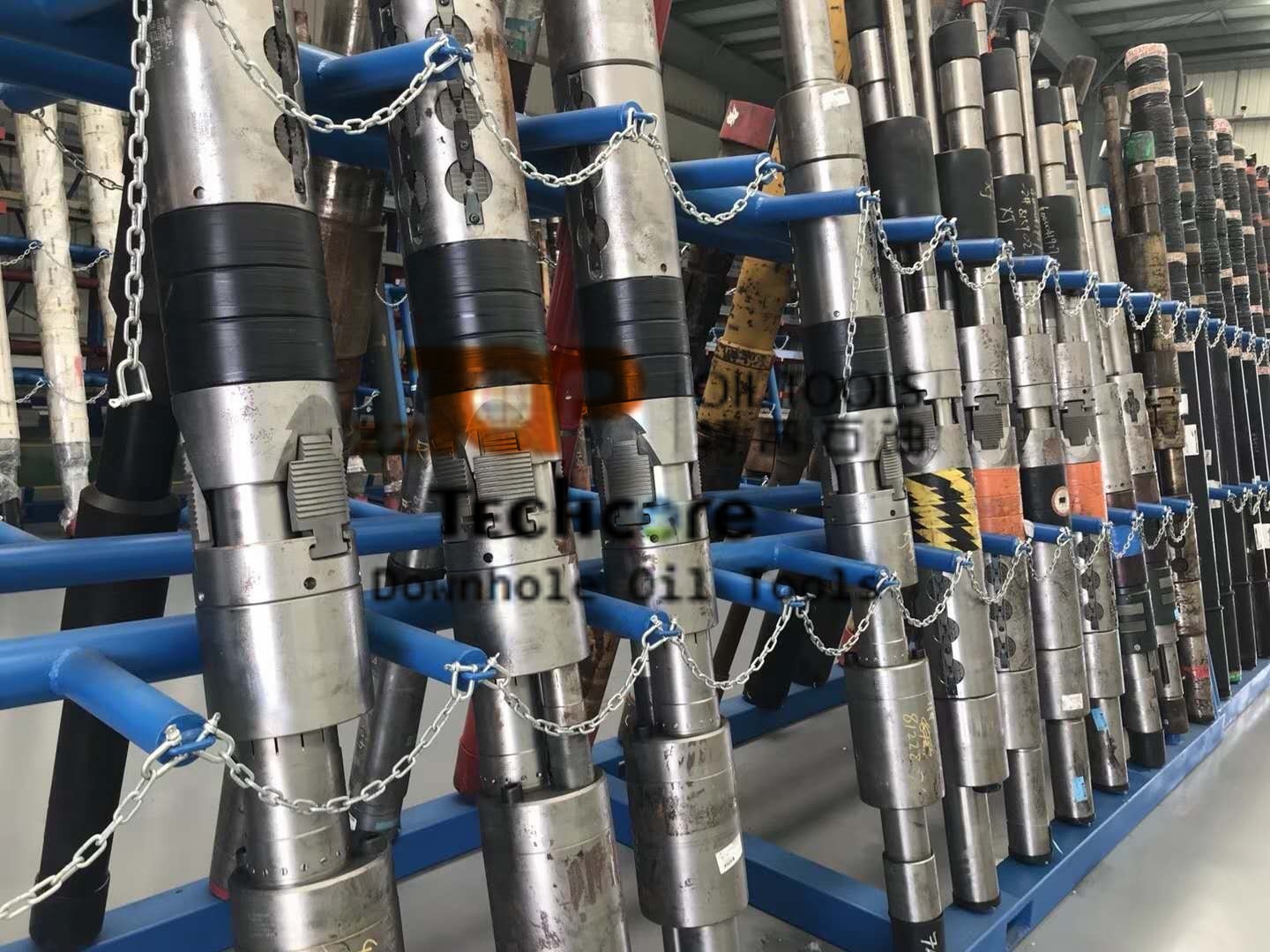

Collet Catcher Sub / Ball Catcher Sub For Well Completion Operations 0
