Drillable Cement Retainer With Mechanical Setting For Well Completion

Minimum Order Quantity :	1 set	Price :	USD 1-10000/set
Packaging Details :	Pollywood	Delivery Time :	30-50 days
Payment Terms :	L/C,T/T,D/P	Supply Ability :	10 set/month

Place of Origin:	China	Brand Name:	ZZ TOP OIL TOOLS
Certification:	ISO, API	Model Number:	K1 cement retainer

Detail Information
Size Range:	4 1/2" - 13 5/8"	Working Pressure:	10000 Psi
Connection Type:	IF, EUE, CAS	Working Temperature:	Up To 400 OF
Max Pressure Rating:	10000 PSI	Material:	Cast Iron

Product Description

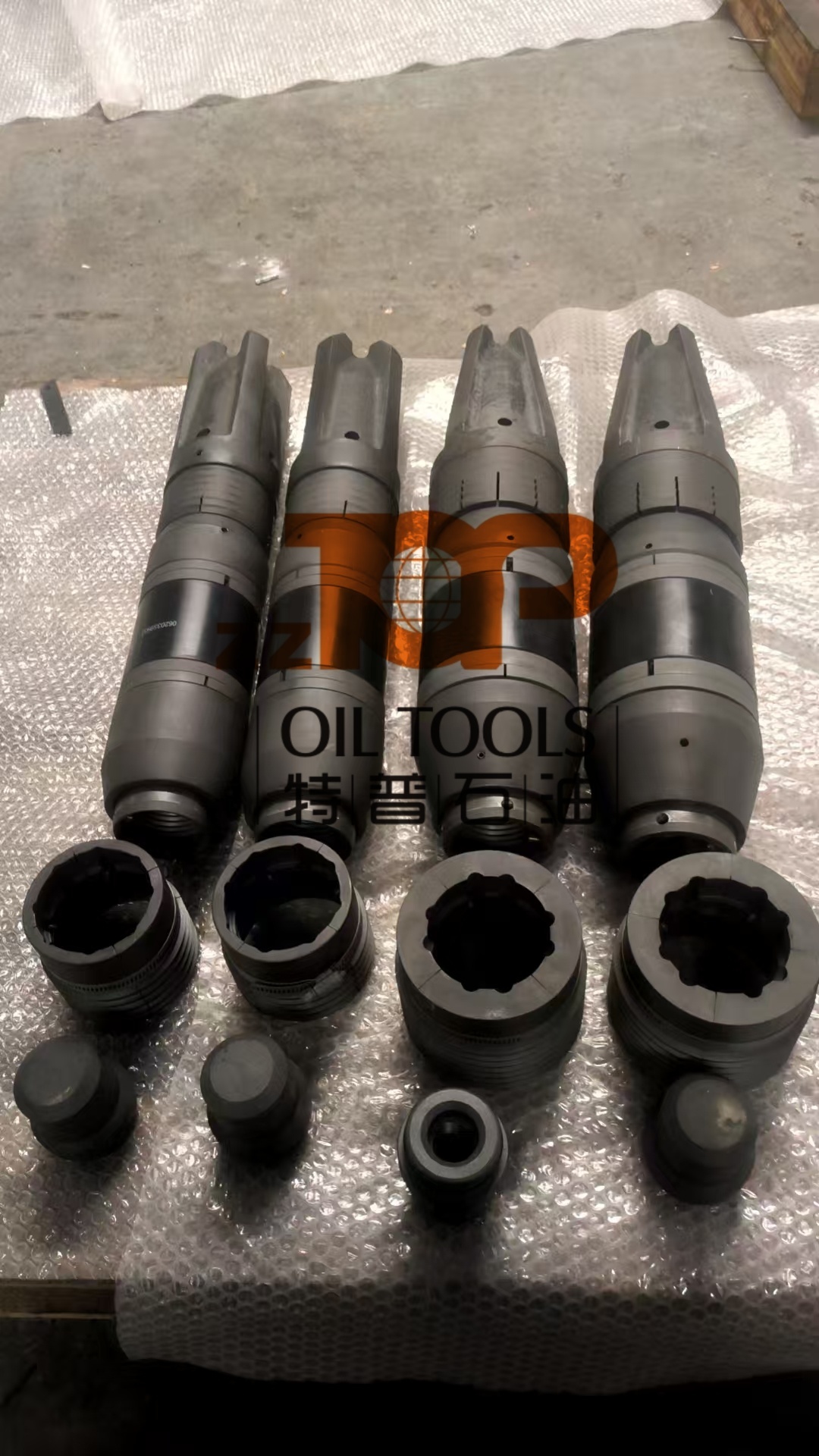

Drillable Cement Retainer With Mechanical Setting For Well Completion

The “K-1” Cement retainer is a high performance drillable cement Retainer ideal for most remedial cementing applications. The “K-1” was Designed to function as a drillable squeeze packer, after cementing, acts as a plug trapping squeeze pressure on the cement below the retainer and isolating the newly cemented area from the hydrostatic pressures above the cement retainer.

Features and Benefits:

The cement retainer will be set securely in any hardness casing, including premium grades
The cement retainer consist of one-piece packing element and flat metal backup rings which combine for superior seal
This kind of cement retainer can be simply converted to wire line set cement retainer
The cement retainer easy to drill out since metal parts made from cast iron;

Specification of Drillable Cement Retainer

	Casing OD (in)	Casing Weight (lbs/ft)	Setting Range Min (in)	Setting Range Max (in)	Max OD (in)	Max Pressure Rating(PSI)
1	4.500	9.5-16.9	3.740	4.090	3.593	10,000
2	5.000	11.5-21.4	4.126	4.560	3.937
3	5.000	23.2-24.1	3.895	4.142	3.706
4	5.500	13-23	4.580	5.044	4.312
5	6.000	18-26	5.140	5.552	4.937
6	6.625	17-32	5.595	6.135	5.370
7	7.000	17-35	6.004	6.538	5.687
8	7.625	20-39	6.625	7.125	6.312
9	8.625	24-49	7.511	8.097	7.125
10	9.625	29.3-58.4	8.435	9.063	8.120	8,000
11	10.750	32.76-60.7	9.660	10.192	9.438	8,000
12	11.750	60-94	10.142	10.772	9.940	4,000
13	11.750	38-66.7	10.656	11.150	10.438	4,000
14	13.375	48-85	12.159	12.715	11.880	3,000
15	16.000	65-118	14.570	15.250	14.125	3,000
