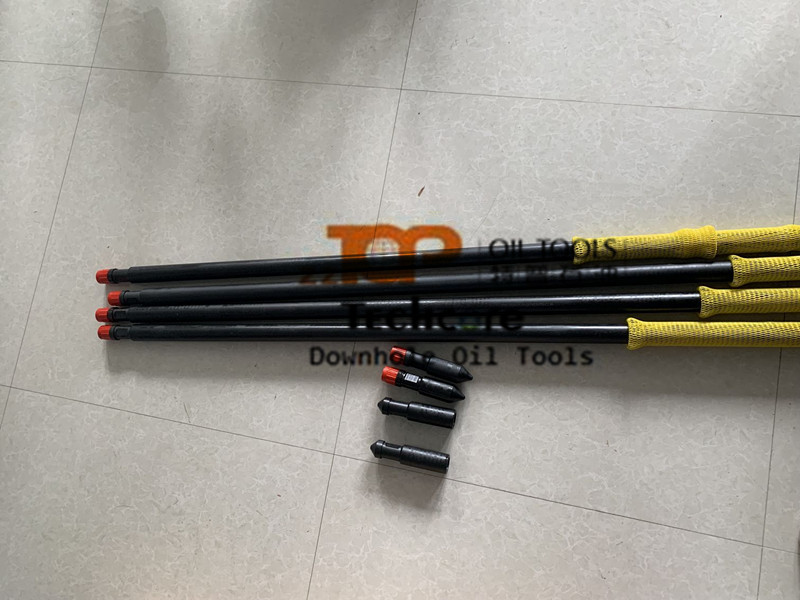

2.5inch Wireline Tools Socket Type Sinker Bar For Wireline Weight Stem

Minimum Order Quantity : 1 set Price : USD 1-10000/set
Packaging Details : Pollywood Delivery Time : 30-50 days
Payment Terms : L/C, T/T, D/P Supply Ability : 10 set/month
Place of Origin: China Brand Name: ZZ TOP OIL TOOLS
Certification: ISO, API Model Number: Wireline Weight Bar

Detail Information

Product: Wireline Stem Bar Sinker Bars Material: Alloy Steel
Size: 1.5inch - 2.5inch Application: Oil & Gas Well Downhole Operation
Connection: 15/16 UN - 1 9/16UN Working Condition: Oil & Gas & H2S Service
Usage: Wireline Operation /Slick Line Service Delivery: 20-30 Days
High Light:

Wireline Tools Socket Type Sinker Bar

,

2.5inch Wireline Tools Socket Sinker Bar

,

1.5inch Socket Type Sinker Bar

Product Description

Wireline Tools Socket Type Sinker Bar For Wireline Weight Stem



Wireline Stem Section is refered as weight bar or sinker bar, which is the part of wireline tool strings, and designed to provide the necessary weight to be be able to deploy a wireline toolstring and  deliver impacts in wireline operations and to overcome the force created by well pressure on the cross section of the wireline in the well.  The wireline sinker bar consists of top sub, sleeve, tungsten and lower joint.  Threads, PCE breech

lock connector, ball and socket type etc. connection types are optional.



Specifcation of wireline stem / sinker bar





Stem O.D Fishneck O.D Connections Length weight
1.25" 1.187" 15/16UN 36" 16.3
1.25" 1.187" 15/16UN 60" 28.4
1.5" 1.375" 15/16UN 24" 18.5
1.5" 1.375" 15/16UN 36" 29.0
1.5" 1.375" 15/16UN 60" 50.5
1.875" 1.75" 1-1/16UN 24" 29.0
1.875" 1.75" 1-1/16UN 36" 46.5
1.875" 1.75" 1-1/16UN 60" 81.0
2.125" 1.75" 1-1/16UN 24" 31.1
2.125" 1.75" 1-1/16UN 36" 49.4
2.125" 1.75" 1-1/16UN 60" 86.0
2.5" 2.313" 1-9/16UN 24" 40.0
2.5" 2.313" 1-9/16UN 36" 68.8
2.5" 2.313" 1-9/16UN 60" 120.0



2.5inch Wireline Tools Socket Type Sinker Bar For Wireline Weight Stem 0
