Pup Joint API Weco Union Straight Pipe Fig 1502 For Well Testing Service
Contact Person : LEE
Phone Number : 86-13659253658
WhatsApp : +8613659253658
| Minimum Order Quantity : | 1 set | Price : | USD 1-10000/set |
|---|---|---|---|
| Packaging Details : | Pollywood | Delivery Time : | 30-50 days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 10 set/month |
| Place of Origin: | China | Brand Name: | ZZ TOP OIL TOOLS |
|---|---|---|---|
| Certification: | ISO, API | Model Number: | Oil & Gas Manifold |
|
Detail Information |
|||
| Product: | Oil & Gas Manifold | Material: | AISI 4130 Alloy Steel |
|---|---|---|---|
| Size: | 3" | Working Pressure: | 2000 Psi |
| Application: | Wellhead Divert Manifold | Connection: | As Per Requirement |
| Working Condition: | Oil & Gas & H2S Service | Working Temperature: | P-U |
| High Light: | API Surface Well Testing Equipment,Surface Well Testing Equipment AISI 4130,oil and gas manifold 14MPa |
||
Product Description

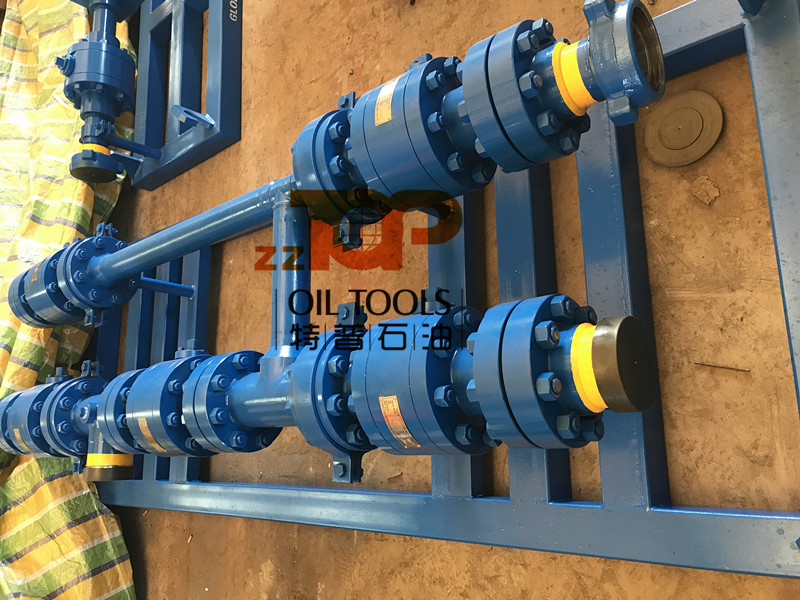

API Oil and Gas Manifold / Divert Manifold For Well SurfaceTesting Equipment
The Oil and Gas Manifolds are used to divert oil or gas during the well testing service. The Oil & Gas manifold divert oil or gas without flow interruption, from the separator to burners for disposal, to a tank for measurements or storage, or to a production line.
The Oil manifold consists of five ball valves arranged as a manifold and is skid-mounted, it allows oil leaving the separator to be diverted to the tank or the burners,or sent directly to a production line
The gas manifold is fitted with two ball valves and is also mounted on a skid.It'sconnected to the separator gas line and to the burner flare lines.
Technical Parameter of Oil and Gas Manifold
| 1 | Service | H2S and CO2 | |||||
| 2 | Max. operating pressure | 2000psi i.e. 14MPa | |||||
| 3 | The highest operating temperature | 250℉ i.e. 121℃ | |||||
| 4 | The lowest operating temperature | -20℉ i.e. -29℃ | |||||
| 5 | Type of valve | ball valve | |||||
| 6 | Assembly I.D | 3″ | |||||
| 7 | Connecting will be according to customers' requirement | ||||||
| 8 | Inlet | 3″FIG602 female union or FIG1502 | |||||
| 9 | Outlet | 3″FIG602 male union or FIG1502 | |||||
| 10 | Standard | H2S and CO2 proof NACE MR 0175 | |||||
