3 1/16" Data Header Well Testing For Surface Well Testing Operation API

Name: 3 1/16" Data Header Well Testing For Surface Well Testing Operation API
Brand: ZZ TOP OIL TOOLS
SKU: Data Header
Price: 1 USD
Availability: InStock
Rating: 4.9 (136 reviews)

Minimum Order Quantity :	1 set	Price :	USD 1-10000/set
Packaging Details :	Pollywood	Delivery Time :	30-50 days
Payment Terms :	L/C, T/T, D/P	Supply Ability :	10 set/month

Place of Origin:	China	Brand Name:	ZZ TOP OIL TOOLS
Certification:	ISO, API	Model Number:	Data Header

Detail Information
Product:	Well Testing Data Header	Material:	AISI 4130 Alloy Steel
Size:	3 1/16"	Working Pressure:	5000psi-5000psi
Application:	Surface Well Testing Service	Connection:	According To Customer's Requirement
Working Condition:	Oil & Gas & H2S Service	Working Temperature:	P-U
High Light:	3 1/16" data header well testing , H2S data header well testing , oil Surface Well Testing Equipment

Product Description

Well Testing Data Header For Surface Well Testing Operation API

Data header is a short sub located directly upstream side of the choke manifold and downstream of the surface safety valve (SSV). The data header provides access to the flow stream for additinal gauge for pressure and temperature data acquisition, produced fluid sampling, and chemical injection. Various models are available for different well conditions (pressures, temperatures, and flow rates) and various connections, such as hammer unions and API-6A flanges.

Features of Data Header

Ports of data header provided for fluid sampling, wellhead-pressure recording,and chemical injection.
Designed with the same ID and connections as the choke manifold, surface safety valve, or piping
The data header is normally designed with hammer unions for connecting straight to the choke manifold or surface safety valve
Complies with API-6A and H2S (NACE† MR0175)

Specification of Data Header

Service:			Sour gas
ID:			3-1/16''
Material class:			EE-NL(Tungsten Carbide Hardfaced)
Max. working pressure:			10,000Psi
Max. hydraulic test pressure:			15,000Psi
Maximum working temperature:			API P to U(-20~450℉)
Inlet connection:			3'' FIG 1502 thread union
			(or 3-1/16" 10K BX154 Flange connection)
Outlet connection:			3'' FIG 1502 wing union
			(or 3-1/16" 10K BX154 Flange connection)
Pressure ports:			(4) 9/16'' Autoclave ports w/15K needle valves
Thermowell:			1 ea
Data Ports			Integral machined into body 1/2”NPT-Qty4 3 /4” Autoclave Qty2
Chemical Injection			1/2”NPT need valve and check valve
Sample Port			1/2” NPT Need valve
Pressure			1/2”NPT Need valve valve and pressure gauge
Temp.			3/4” Autoclave with thermowell

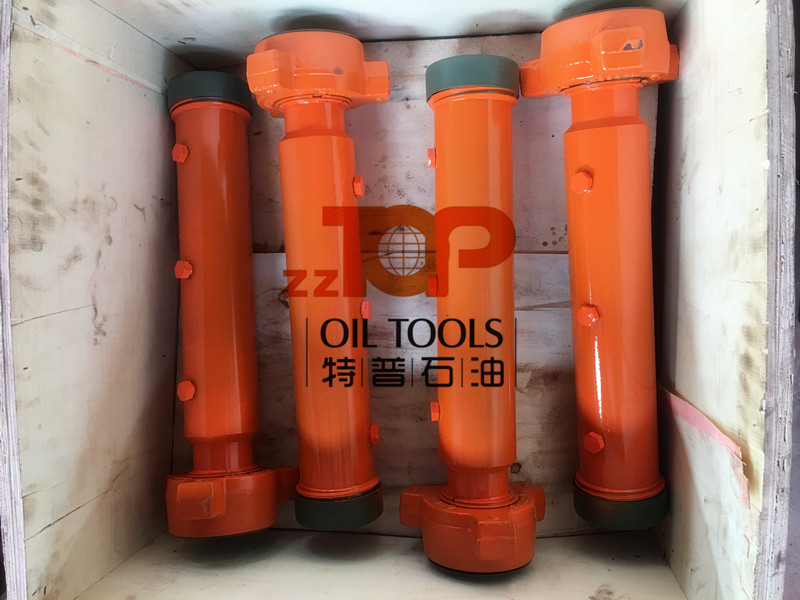

3 1/16" Data Header Well Testing For Surface Well Testing Operation API 0
