Well Head Casing For Wellhead Equipment 9 5/8" X 5 1/2" 3000 Psi

Minimum Order Quantity : 1 set Price : USD 1-10000/set
Packaging Details : Pollywood Delivery Time : 30-50 days
Payment Terms : L/C, T/T, D/P Supply Ability : 10 set/month
Place of Origin: China Brand Name: ZZ TOP OIL TOOLS
Certification: ISO, API Model Number: 9 5/8" Casing Head

Detail Information

Product: Casing Head With Casing Hanger Material: AISI 4130 Alloy Steel
Casing Size: 9 5/8 Inch Working Pressure: 3000 Psi
Application: Wellhead Equipment Connection: SOW / Flanged
Working Condition: Oil & Gas & H2S Service Working Temperature: P-U
High Light:

Wellhead Equipment 9 5/8"

,

Wellhead Equipment 5 1/2"

,

well head casing 3000 psi

Product Description

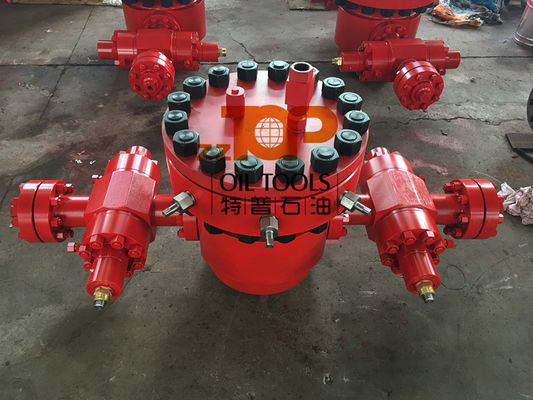

API 6A Casing Head 9 5/8" x 5 1/2" - 3000 psi For Wellhead Equipment



The casing head is a kind of part for connecting casings and wellhead  equipment according to API 6A. The casing head is used to support the weight of technical casing and intermediate casing and seal the annular space between the casings, which provides a transition joint for the installation of the tubing head, Christmas tree and other wellheads. The two-side-outlet design allows the casing head to supply cement, monitor and control well's sinking, and inject balance liquids etc.



Features of Casing Head



1.Top connections of casing head are API 6A flanged, and the flanges are provided with locking bolts.



2.Casing hanger has straight type seat bore 45degree cone of hanging shoulders with strong loading bolts.



3.Structural type of the matched casing hanger: slip and mandrel.



4.Outlet connection can be thread, bolted flange.



5.Bottom connection can be threaded, welded or slip.



Technical Parameter of casing Head



Product Name API 6A Casing Head/Casing Spool/Casing Head Assembly
Material 60K/75K forged alloy steel
Nominal Size 7 1/16”-30”
Working Pressure 2000Psi~20000Psi
Working Temperature -60℃~121℃ (KU)
Material Class AA, BB, CC, DD, EE, FF
Product Specification Level PSL1~PSL3G
Performance Requiremen Level PR1~PR2



Specification of casing head



Rating Top Flange Size Casing Size Total Height (H) Height Of Side Outlets(h) Thru Bore (Min fA) Bore Top Flange (fB)

2000 PSI



11 8 5/8 19 61/2 8 1/6 10 31/32
11 9 5/8 19 6 1/2 9 1/8 10 31/32
11 10 3/4 19 61/2 9 15/16 10 31/32
13 5/8 11 3/4 19 6 1/2 9 15/16 10 31/32
13 5/8 13 3/8 19 6 1/2 12 1/2 13 19/32
16 3/4 16 18 1/8 6 1/2 15 3/8 16 11/16
21 1/4 20 15 11/16 5 18 15/16 20 1/4

3000 PSI



11 8 5/8 19 6 1/2 8 1/16 10 31/32
11 9 5/8 19 6 1/2 9 1/8 10 31/32
11 10 3/4 19 6 1/2 9 15/16 10 31/32
13 5/8 11 3/4 19 6 1/2 11 3/8 13 19/32
13 5/8 13 3/8 19 6 1/2 12 1/2 13 19/32
16 3/4 16 18 6 1/2 15 3/8 16 11/16
20 3/4 20 15 11/16 6 1/2 18 15/16 20 1/4

5000 PSI



11 8 5/8 19 6 1/2 8 1/16 10 31/32
11 9 5/8 19 6 1/2 9 1/8 10 31/32
11 10 3/4 19 6 1/2 9 15/16 10 31/32
13 5/8 13 3/8 19 6 1/2 12 1/2 13 19/32



Well Head Casing For Wellhead Equipment 9 5/8" X 5 1/2" 3000 Psi 0 Well Head Casing For Wellhead Equipment 9 5/8" X 5 1/2" 3000 Psi 1
