Pump Through Rupture Disc Circulating Valve PT-RD Downhole Safety Valve
Contact Person : LEE
Phone Number : 86-13659253658
WhatsApp : +8613659253658
| Minimum Order Quantity : | 1 set | Price : | USD 1-10000/set |
|---|---|---|---|
| Packaging Details : | Pollywood | Delivery Time : | 30-50 days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 10 set/month |
| Place of Origin: | China | Brand Name: | ZZ TOP OIL TOOLS |
|---|---|---|---|
| Certification: | ISO, API | Model Number: | Pump Out Circulating Sub |
|
Detail Information |
|||
| Product: | Pump Out Circulating Sub | Type: | APR Tools |
|---|---|---|---|
| Size: | 5 Inch | Working Pressure: | 5000psi |
| Application: | Oil Well Downhole Testing Service | Connection: | IF, EUE , CAS |
| Working Condition: | Oil & Gas & H2S Service | Working Temperature: | Up To 425oF |
| High Light: | APR Circulating Valve,5000 psi Circulating Valves,5000psi drill stem test equipment |
||
Product Description

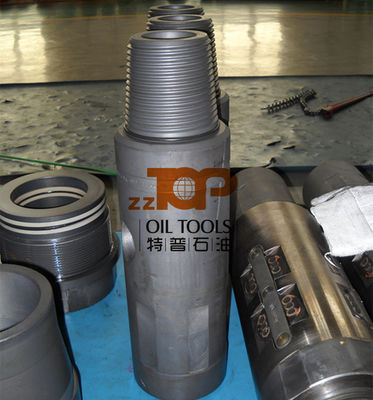

Pump Out Reverse Circulating Valve / Circulating Sub For Drill Stem Testing Service

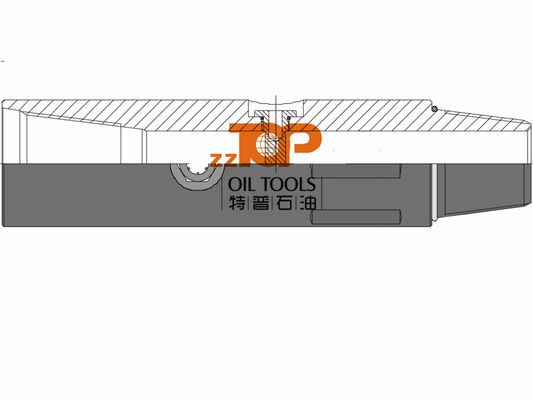

The Pump Out Reverse Circulating Valve is a Hollow Plug Impact type Circulating Sub. The Pump Out Reverse Circulating Valve is used in the more difficult well testing operations, where depth and high-pressure differential across the plug sometimes make it difficult to open a conventional reversing sub.
The Pump Out Reversing Sub allows removal of free oil or gas in the pipe (minimizing the risk of fire) while the tool is coming out of the hole. It is also used to circulate and condition the drilling fluid when necessary.
The Pump Out Reversing Circulating Valve / Circulating Sub also equipped with a shear pin with plate to be a backup device in case the plug can not be broken by flute bar, applying the tubing pressure, the pin can be sheared by the pressure and build the communication.
Technical parameter of Pump Out Reverse Circulating Valve
| 1 | OD | 5”(127.5mm) | 4.25”(108mm) | 6.25”(158.8mm) | ||||||||||||||||||||||||||||||||||||||
| 2 | ID | 57mm | 45mm | 82mm | ||||||||||||||||||||||||||||||||||||||
| 3 | Length | 500mm | 450mm | 520mm | ||||||||||||||||||||||||||||||||||||||
| 4 | Working Pressure | 35Mpa(5000psi) | 35Mpa(5000psi) | 35Mpa(5000psi) | ||||||||||||||||||||||||||||||||||||||
| 5 | Tensile Strength | 2034KN | 1418KN | 2882KN | ||||||||||||||||||||||||||||||||||||||
| 6 | Burst Pressure | 165Mpa | 156Mpa | 182Mpa | ||||||||||||||||||||||||||||||||||||||
| 7 | Collapse Pressure | 148Mpa | 146Mpa | 168Mpa | ||||||||||||||||||||||||||||||||||||||
| 8 | Torque Strength | 43kN.m | 21.6kN.m | 55kN.m | ||||||||||||||||||||||||||||||||||||||
| 9 | Working Temp. | -29oC~180oC | ||||||||||||||||||||||||||||||||||||||||
| 10 | Service | H2S NACE MR0175(Above 175F) | ||||||||||||||||||||||||||||||||||||||||
| 11 | Connection Thread |
3 1/2” /EUE/IF/ |
3 1/2” /EUE/IF/ |
4 1/2” IF Box Pin | ||||||||||||||||||||||||||||||||||||||
