Alloy Steel Finishing Wireline Tools Wire Finder Wireline Slickline Pulling Tools
Contact Person : LEE
Phone Number : 86-13659253658
WhatsApp : +8613659253658
| Minimum Order Quantity : | 1 set | Price : | USD 1-10000/set |
|---|---|---|---|
| Packaging Details : | Pollywood | Delivery Time : | 30-50 days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 10 set/month |
| Place of Origin: | China | Brand Name: | ZZ TOP OIL TOOLS |
|---|---|---|---|
| Certification: | ISO, API | Model Number: | Wireline tools |
|
Detail Information |
|||
| Product: | Wireline Tool String | Material: | Alloy Steel |
|---|---|---|---|
| Size: | 1.25inch - 2.5inch | Application: | Oil & Gas Well Downhole Operation |
| Connection: | 5/8 UN - 1 9/16UN | Working Condition: | Oil & Gas & H2S Service |
| Usage: | Wireline Operation | Delivery: | 20-30 Days |
| High Light: | oil well Wireline Tools,Gas Well Wireline Tools,5/8 UN slickline tool string |
||
Product Description

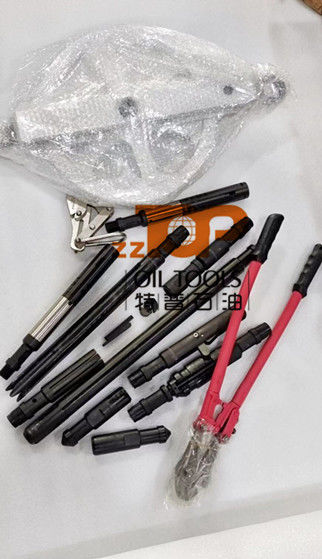

Oil & Gas Well Dowhole Wireline Tool String 1.25" - 2.5" For Wireline Service
The Wireline Tool String is the name give to any assembly of wireline equipment run in the well to perform some type of operation. In wireline job, the wireline string is run, manipulated andretrieved by the upward or downwardmovement of the wire which is itself raised and lowered by a winch at the surface. The wireline tool string is make up of a number of basic components with various other servicetools attached according to the type ofoperation undertake.
There are many different operations and maydifferent conditions to be satisfied in eachoperation, so that the number and type ofservice tools available is very large, althoughsome tools are used far more frequently thanothers. the precise configuration of tool stringwill be contingent on factors such as job type,access, hole deviation, depth, pressure,completion type, log history and so on.
Specifcation of Wireline Tool String
| NO. | Name | Main Specifications |
| 1 | Rope Socket-Pear Drop With Sleeve |
1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 2 | Rope Socket-Disc & Spring Type | 1＂,1.25＂,1.5＂,1.875＂,2.125＂,2.5＂ |
| 3 | Rope Socket-Slip Type | 1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 4 | Swivel Joint | 1.5＂,1.75＂,1.875＂,2.5＂ |
| 5 | Heavy Duty Swivel Joint | 1.5＂,1.75＂,1.875＂,2.5＂ |
| 6 | Stem-Standard | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 7 | Stem-Tungsten | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 8 | Stem-Lead Filled | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 9 | Stem-Tungsten Filled | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 10 | Stem-Roller | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 11 | Accelerator | 1.5＂,1.75＂,1.875＂,2.125＂,2.5＂,3＂ |
| 12 | Link Jar | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 13 | Tubular Jar | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 14 | Spring Jar | 1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 15 | Hydraulic Jar | 1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 16 | Knuckle Jar | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 17 | Breech Lock Quick Joint | 1.5＂,1.875＂,2.5＂ |
| 18 | BDK Heavy Duty Q.R.J | 1.5＂,1.875＂,2.5＂ |
| 19 | Wireline Knuckle Quick Joint | 1.5＂,1.875＂,2.5＂ |
| 20 | Crossover | 15/16UN, 1-1/16UN, 1-9/16UN, 1/2-13UN, 5/8-11UN, 3/4-16UN |
| 21 | Wireline Knuckle Joint | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 22 | Heavy Duty Knuckle Joint | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 23 | Spring Centralizer | 1.5＂,1.875＂,2.125＂,2.5＂ |
| 24 | Fluted Centralizer | 2-3/8＂,2-7/8＂,3-1/2＂,4-1/2＂ |
| 25 | Roller Centralizer | 1.5＂,1.75＂,1.875＂,2.5＂ |
| 26 | Supported Roller Centralizer | 1.5＂,1.875＂,2.125＂,2.5＂ |
| 27 | Fluted Stepped Slipover Centralizer |
2-3/8＂,2-7/8＂,3-1/2＂,4-1/2＂ |
| 28 | Roller Ball Sub | 1.75＂,2＂,2.25＂,2.5＂ |
