Hydraulic Open Sleeve For Oil & Gas Well Fracturing Operations
Hydraulic Open Sleeve For Oil & Gas Well Fracturing Operations Hydraulic Open Sleeve For Oil & Gas Well Fracturing Operations
Contact Now

Hydraulic Open Sleeve For Oil & Gas Well Fracturing Operations

Minimum Order Quantity : 1 set Price : USD 1-10000/set
Packaging Details : Pollywood Delivery Time : 30-50 days
Payment Terms : L/C, T/T, D/P Supply Ability : 10 set/month
Place of Origin: China Brand Name: ZZ TOP OIL TOOLS
Certification: ISO, API Model Number: Hydraulic Frac Sleeve

Detail Information
Product: Hydraulic Open Sleeve Application: Oil & Gas Well Fracturing Operation
Usage: To Provide The Initial Communication Tubing Size: 2 7/8" - 5 1/2"
Working Pressure: 15000 Psi Connection: IF, EUE , CAS
Working Condition: Oil & Gas & H2S Service Working Temperature: Up To 400 OF
Highlight:

Gas Well Fracturing Hydraulic Open Sleeve

,

Oil Well Fracturing Hydraulic Open Sleeve

Product Description

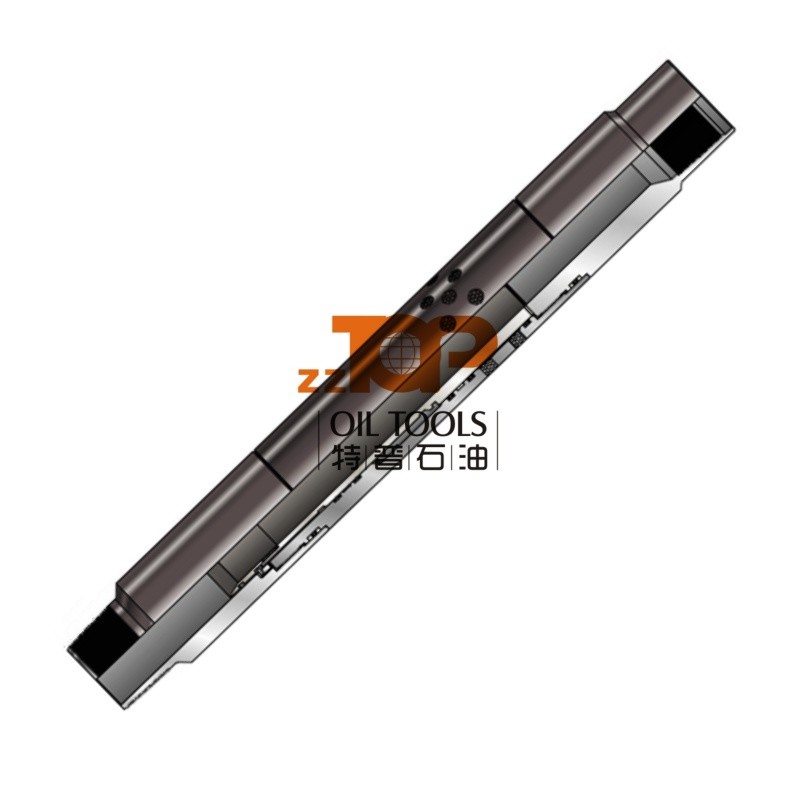

Hydraulic Open Sleeve For Oil & Gas Well Fracturing Operations



The Hydraulic Open Sleeve is installed at the bottom of the fracturing system to provide the initial communication between tubing and formation during oil & gas well fracturing operation. The Frac Sleeve is activated by applying pressure to the tubing string that exceeds a predeterminded shear-pinned value, then provide communication between the tubing and annulus for subsequent fracturing operations. The reclosable version can be provided if customer desired



Features and Benefits:

  • The external material is optional (P110, L80 or higher grade);
  • Max pressure rating of 15,000PSI[103.4MPa];
  • Max temperature rating of 400℉;



Technical parameter of Hydraulic Open Sleeve





Specification
Tubing Size Max.OD Min.ID
in mm in mm in mm
2 7/8 73.03 3.668 93.17 2.441 62.00
4.000 101.60
3 1/2 88.90 4.250 107.95 2.582 65.59
4.500 114.30 2.559 65.00
4.750 120.65 3.000 76.20
5.000 127.00 2.756 70.00
4 1/2 114.30 5.250 133.35 3.250 82.55
5.500 139.70 4.000 101.60
5 1/2 139.70 6.300 160.00 4.778 121.36
