Well Testing Wireline Set Mechanical Set Retrievable Bridge Plug 5 1/2" X 10000 Psi WP RBP

Minimum Order Quantity : 1 set Price : USD 1-10000/set
Packaging Details : Pollywood Delivery Time : 30-50 days
Payment Terms : L/C, T/T, D/P Supply Ability : 10 set/month
Place of Origin: China Brand Name: ZZ TOP OIL TOOLS
Certification: ISO, API Model Number: 3L Retrievable Bridge Plug

Detail Information

Product: 3L Retrievable Bridge Plug Type: Packer Type RBP
Size: 5.5 Inch Working Pressure: 10000psi
Application: Oil Well Downhole Testing Service Connection: IF, EUE , CAS
Working Condition: Oil & Gas & H2S Service Working Temperature: Up To 425oF
High Light:

mechanical set retrievable bridge plug 5 1/2"


mechanical set retrievable bridge plug 10000 Psi


wireline set bridge plug RBP

Product Description

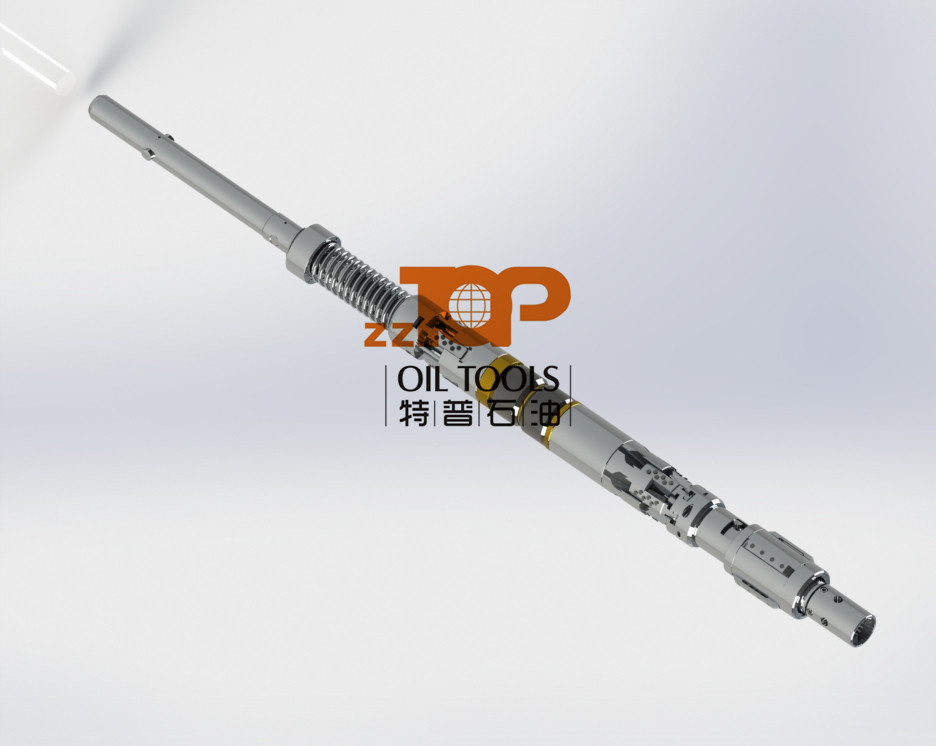

Well Testing Retrievable Bridge Plug 5 1/2" x 10000 psi WP RBP

3L Retrievable Bridge Plug(RBP) is a high-pressure packer style bridge plug used for multiple selective zone treating and testing operations. The 3L RBP is designed to set in tension or compression, which makes it ideal for shallow applications to test wellhead for deep, high-pressure applications. The plug is designed with a large internal by-pass to prevent swabbing when running and retrieving. The by- pass closes during the setting of the plug and opens prior to releasing the upper slips to equalize pressure when unsetting.


The 3L Retrievable Bridge Plug can be run alone on tubing or can be run below  the RTTS or CHAMP packer. The tool is run in the hole, set, and released from the tubing or packer. It remains in place until the tubing or packer is re-latched, the bypass valve is opened, and the slips are released.


Specifcation of 5.1/2" 3L Retrievable Bridge Plug


Packer Element OD 113.0mm
Top Shoe OD 115.6mm
Length 2110mm
Packer Element Diff.Pressure 70Mpa
Tensile Strength 423KN
Torque Strength 4.25KN.M
Working Temperature -29°C~177C
Casing Range 5 1/2"13-20lb/ft
Service H2SNACEMR 0175(Above 175F)
Connection Thread 27/8"8RDEUEx 23/8"8rdEUE



 Well Testing Wireline Set Mechanical Set Retrievable Bridge Plug 5 1/2" X 10000 Psi WP RBP 0
