API 6A Blind Flange Adapter Wellhead Adapter For Wellhead Equipment Connection
Contact Person : LEE
Phone Number : 86-13659253658
WhatsApp : +8613659253658
| Minimum Order Quantity : | 1 set | Price : | USD 1-10000/set |
|---|---|---|---|
| Packaging Details : | Pollywood | Delivery Time : | 30-50 days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 10 set/month |
| Place of Origin: | China | Brand Name: | ZZ TOP OIL TOOLS |
|---|---|---|---|
| Certification: | ISO, API | Model Number: | BX Ring Gasket |
|
Detail Information |
|||
| Product: | RTJ Ring Gasket | Material: | AISI 4130 Alloy Steel |
|---|---|---|---|
| Size: | According To Flange Szie | Working Pressure: | 3000 Psi |
| Application: | Flange Adapter Seal | Usage: | Wellhead Equipment Seal |
| Working Condition: | Oil & Gas H2S Service | Working Temperature: | P-U |
| High Light: | BX Wellhead Adapter 3000 Psi,BX 3000 Psi Wellhead Adapter,Metal ring joint gasket |
||
Product Description

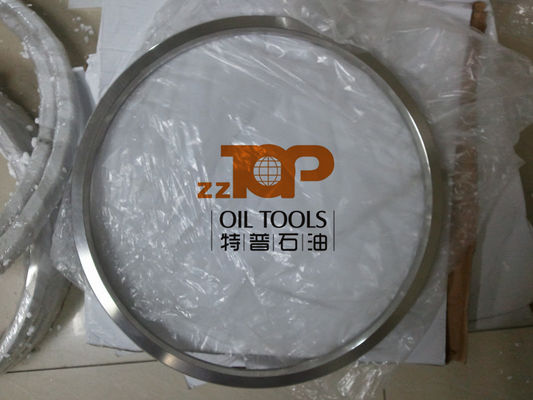

API BX Ring Gasket Metal Ring Joint Gasket / RTJ Ring Gasket
BX Ring Gasket is pressure energized Ring Joint gaskets, manufactured in accordance with API 6A. The RTJ BX ring gasket are designed for using on pressurized systems up to 20,000 psi . The Style BX gasket design allows virtual face to face contact with the flange faces which in turn making the gasket fully trapped on both the inner and outer diameters. All BX Gaskets incorporate a pressure balance hole to ensure equalization of pressure which may be trapped in the grooves. One pressure passage hole required per ring on center line.
Specification of BX Ring gakset
Ring number
| Nominal size
| Outside diameter of ring OD | Height of ring | Width of ring | Diameter of flat ODT | Width of flat Typ. | Hole size
| Corner Radius Typ. |
| BX 150 | 1-11/16 | 2.842 | 0.366 | 0.366 | 2.790 | 0.314 | 0.06 | 0.06 |
| BX 151 | 1-13/16 | 3.008 | 0.379 | 0.379 | 2.954 | 0.325 | 0.06 | 0.06 |
| BX 152 | 2-1/16 | 3.334 | 0.403 | 0.403 | 3.277 | 0.346 | 0.06 | 0.06 |
| BX 153 | 2-9/16 | 3.974 | 0.448 | 0.448 | 3.910 | 0.385 | 0.06 | 0.06 |
| BX 154 | 3 1/ 16 | 4.600 | 0.488 | 0.488 | 4.531 | 0.419 | 0.06 | 0.06 |
| BX 155 | 4-/16 | 5.825 | 0.560 | 0.560 | 5.746 | 0.481 | 0.06 | 0.06 |
| BX 156 | 7-1/16 | 9.367 | 0.733 | 0.733 | 9.263 | 0.629 | 0.12 | 0.06 |
| BX 157 | 9 | 11.593 | 0.826 | 0.826 | 11.476 | 0.709 | 0.12 | 0.06 |
| BX 158 | 11 | 13.860 | 0.911 | 0.911 | 13.731 | 0.782 | 0.12 | 0.06 |
| BX 159 | 13-5/8 | 16.800 | 1.012 | 1.012 | 16.657 | 0.869 | 0.12 | 0.06 |
| BX 160 | 13-5/8 | 15.850 | 0.938 | 0.541 | 15.717 | 0.408 | 0.12 | 0.12 |
| BX 161 | 16-3/4 | 19.347 | 1.105 | 0.638 | 19.191 | 0.482 | 0.12 | 0.12 |
| BX 162 | 16-3/4 | 18.720 | 0.560 | 0.560 | 18.641 | 0.481 | 0.06 | 0.06 |
| BX 163 | 18-3/4 | 21.896 | 1.185 | 0.684 | 21.728 | 0.516 | 0.12 | 0.12 |
| BX 164 | 18-3/4 | 22.463 | 1.185 | 0.968 | 22.295 | 0.800 | 0.12 | 0.12 |
| BX 165 | 21-1/4 | 24.595 | 1.261 | 0.728 | 24.417 | 0.550 | 0.12 | 0.12 |
| BX 166 | 21-1/4 | 25.198 | 1.261 | 1.029 | 25.020 | 0.851 | 0.12 | 0.12 |
| BX 167 | 26-3/4 | 29.896 | 1.412 | 0.516 | 29.696 | 0.316 | 0.06 | 0.06 |
| BX 168 | 26-3/4 | 30.128 | 1.412 | 0.632 | 29.928 | 0.432 | 0.06 | 0.06 |
| BX 169 | 5-1/8 | 6.831 | 0.624 | 0.509 | 6.743 | 0.421 | 0.06 | 0.06 |
| BX 170 | 9 | 8.584 | 0.560 | 0.560 | 8.505 | 0.481 | 0.06 | 0.06 |
| BX 171 | 11 | 10.529 | 0.560 | 0.560 | 10.450 | 0.481 | 0.06 | 0.06 |
| BX 172 | 13-5/8 | 13.113 | 0.560 | 0.560 | 13.034 | 0.481 | 0.06 | 0.06 |
| BX303 | 30 | 33.573 | 1.494 | 0.668 | 33.361 | 0.457 | 0.06 | 0.06 |
