AISI Choke And Kill Manifold Api 16C Choke Manifold 4 1/16" X 5000psi

Minimum Order Quantity : 1 set Price : USD 1-10000/set
Packaging Details : Pollywood Delivery Time : 30-50 days
Payment Terms : L/C, T/T, D/P Supply Ability : 10 set/month
Place of Origin: China Brand Name: ZZ TOP OIL TOOLS
Certification: ISO, API Model Number: Kill Manifold

Detail Information

Product: Kill Manifold Material: AISI 4130 Alloy Steel
Main Bore: 4 1/16" Working Pressure: 5000 Psi
Application: Oil & Gas Well Drilling Opeation Usage: Well Flow Control
Working Condition: Oil & Gas H2S Service Working Temperature: P-U
High Light:

AISI choke and kill manifold


choke and kill manifold 4 1/16"


api 16C choke manifold 5000psi

Product Description

API 16C Kill Manifold For High Pressure Well Flow Control 4 1/16" x 5000psi


Kill manifold is important control equipment during drilling well, the manifold can be used to kill the well and avoid the risk of fire. Kill manifolds are used to forcibly inject heavy drilling fluid, fresh water and fire extinguishing agent into the well to carry out well-kill operation, prevent well kick, blowout or fire, and fire suppression operation after fired. It can be open flowed through flow out pipeline directly to release bottom pressure of the well. Kill manifold composes of check valve, gate valve, flanged pipe and pressure indicator.


Function of Kill Manifold


When the wellhead pressure is increased, the heavy weight drilling fluid can be pumped into the well through the kill manifold to balance the pressure in bottom hole, which can prevent from well kick and blowout. The discharge pipe line connected to the kill manifold can be used for direct discharging, to release the pressure in bottom hole. Also we can adopt squeeze cementing operations to inject the water and fire extinguishing agent into the wellhead, through the check valve in the kill manifold, the killing fluid or other fluid can only be injected into the well, and can not be returned to achieve the killing and other operations.



Technical Parameter of Kill Manifold



Cold working press Mpa(psi) 21Mpa(3000psi) 35Mpa(5000psi) 70Mpa(10000psi) 105Mpa(15000psi)
Nominal diameter 2-1/16in~4-1/16in
Working temperature -29~121℃
Product specification level No less than PSL3
Material grade (valve, joint) EE-FF
Working medium mud, petroleum, natural gas

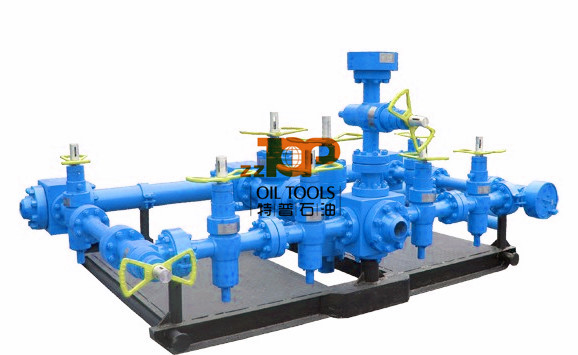

AISI Choke And Kill Manifold Api 16C Choke Manifold 4 1/16" X 5000psi 0
