15000psi API Oil & Gas Surface Well Testing Equipment Surface Test Tree Flowhead

Minimum Order Quantity : 1 set Price : USD 1-10000/set
Packaging Details : Pollywood Delivery Time : 30-50 days
Payment Terms : L/C, T/T, D/P Supply Ability : 10 set/month
Place of Origin: China Brand Name: ZZ TOP OIL TOOLS
Certification: ISO, API Model Number: 3 1/16" Flowhead

Detail Information

Product: Flowhead Assembly Material: AISI 4130 Alloy Steel
Size: 3 1/16" Working Pressure: 10000psi / 15000psi
Application: Surface Well Testing Service Connection: According To Customer's Requirement
Working Condition: Oil & Gas & H2S Service Working Temperature: P-U
High Light:

15000psi Surface Well Testing Equipment

,

oil Surface Well Testing Equipment

,

gas surface test tree

Product Description

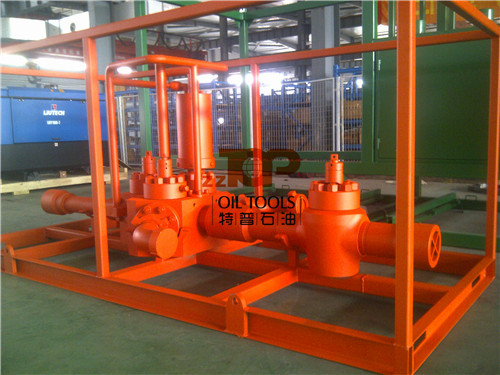

API Oil & Gas Well Surface Test Tree / Flowhead For Surface Well Testing



Soid BLOCK Flowhead is the surface test tree used in wellhead, which incorporates a solid block valve body, an upper swabbing valve,a kil line vaive and a hydraulically actuated flow line valve.
Located below the main valve block is a high axal thrust tubing swivel that allows tool string rotation during operations while under pressure. ALL
valves in this system are magnum gate valve that provide metal-to-metal sealing.


Flowhead includes a high temperature model to 400oF additional actuators for other valves;hand pump or hydrauic control unit.wirelne cutting
mechanism in swab valve and valve trim options.



Techinical Parameter :


Flowhead sizes:1 13/16"through 7 3/8
Pressure Rating:5000 through 15000psi
Max.Tensile Rating:435000 to 1500000 IBS.at 0 PSI


Modular Flowhead is a lightweight surface control head designed for use in testing.perforating and wireline operations. Upper and lower units are coupled with a load bearing quick union for easy assembly and disassembly.Components include a handing sub,upper swab gate valve,remote safety valve.flow line and kill line cutlets. Optional equipment includes hand pump or hydraufic control unit.wireline cutting mechanism in swab
valve wireline adapter and transportation basket:



Control Head sizes: 2 1/16"through 3 1/8"
pressure Rating: 5000and10000ps
Max.Tensile Rating: 3000.000to405.0001B5





Specification of Surface test tree / Flowhead



Service H2S and CO2, NACE MR-01-75
Pressure Rating 10,000psi / 68.9MPa
Working Temperature Rating -20℉/-28.9℃~ 250℉/121℃
Standards NACE MR01-075, API 6A, PSL-3, EE, P+U. No inlays in RTJ’S
Valve Type Gate Valve
Valve Configuration (1) 3-1/16” – MANUAL SWAB VALVE
(1) 3-1/16” – HYDRAULIC FAILSAFE CLOSED FLOW LINE VALVE
(1) 3-1/16” – MANUAL KILL LINE VALVE
(1) 3-1/16” – MANUAL MASTER VALVE
Inside Diameter 3-1/16”
Top Connection 5-3/4” – 4 STUB ACME-2G-RH BOX
Bottom Connection 5-3/4” – 4 STUB ACME-2G-RH PIN
Kill Line Connection 3” Fig 1502 Female
Flow Line Connection 3” Fig 1502 Male
Sealing Mechanism Elastomer assisted, metal to metal sealing between gate and seats
Maximum Yield 400,000 lb (18 1437 kg) @10KPSI WP; 635,000 lb @0KPSI WP
