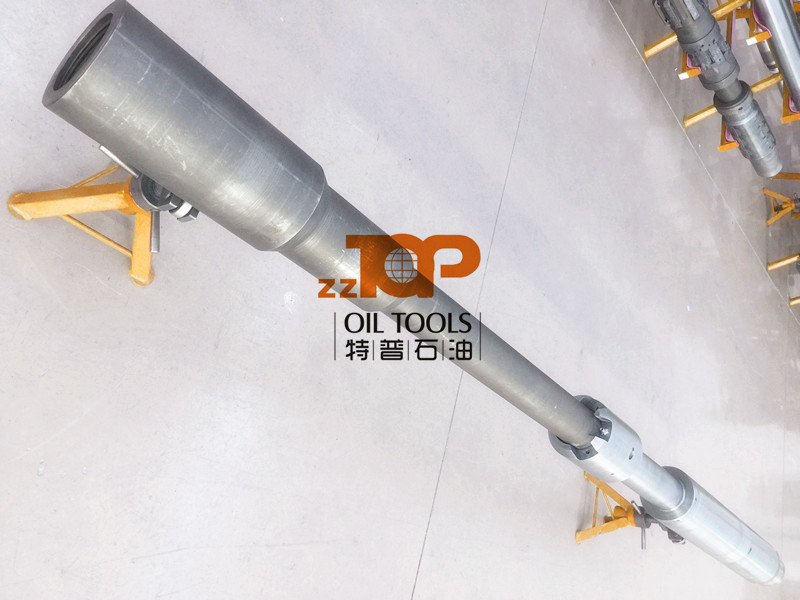

8 Inch Super Safety Valve For Oil Well Drill Stem Testing Tools BOP Subsurface Safety Valve

Minimum Order Quantity : 1 set Price : USD 1-10000/set
Packaging Details : Pollywood Delivery Time : 30-50 days
Payment Terms : L/C, T/T, D/P Supply Ability : 10 set/month
Place of Origin: China Brand Name: ZZ TOP OIL TOOLS
Certification: ISO, API Model Number: SSV

Detail Information

Product: Super Safety Valve / SSV Application: Oil Well Testing Service
Usage: Well Flow Control Size: 8 Inch
Working Pressure: 15000psi Connection: IF, EUE , CAS
Working Condition: Oil & Gas & H2S Service Working Temperature: Up To 425oF
Highlight:

8 inch Drill Stem Testing Tools

,

425oF Drill Stem Testing Tools

,

Well subsurface safety valve

Product Description

BOP Safety Valve / Super Safety Valve For Oil Well Testing Service



The BOP Safety Valve is fail-safe sub-surface barrier, works as a master valve for testing from a land or jack-up rig. It is normally run inside or below the blowout preventer (BOP) and is used to control well flow. The Safety Valve is held in the BOP so that when activated, the ball valve will seal off the string below. Meanwhile, pipe rams can be activated to seal off the annulus



The BOP Safety Valve features a 3.0-in. ID, 8.0-in. OD, and 15,000 psi working pressure. This valve has a through port for chemical injection downhole or to control a subsurface safety valve. It is capable of cutting wireline and coiled tubing using the nitrogen charge or by application of balance line pressure.


Technical parameter of BOP Safety Valve / Super Safety Valve




OD

ID

End

Total Length

Tensile Rating**

Working Pressure

Temperature Range
in. (cm) in. (cm) Connections in, (cm) lb (kg) lb (kg) °F(°C)
8.00 3,01 5 3/4 4SA.B 142.93 1417,032 15,000 -20 to 350
(20,32) (7.65) X5-4ACME.B (363.05) (642 755) (6804) (-29 to 177)












8 Inch Super Safety Valve For Oil Well Drill Stem Testing Tools BOP Subsurface Safety Valve 0  8 Inch Super Safety Valve For Oil Well Drill Stem Testing Tools BOP Subsurface Safety Valve 1
