4.75 inch Squeeze Packer / Drillable Bridge Plug with 10000psi working pressure

Product Details:
Place of Origin: China
Certification: ISO, API
Model Number: SVB Squeeze Packer
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1-10000/set
Packaging Details: Pollywood
Delivery Time: 30-50 days
Payment Terms: L/C, T/T, D/P
Supply Ability: 10 set/month

Detail Information

Product: SVB Squeeze Packer Application: Oil Well Cementing Operation
Usage: Well Pressure Control Size: 5 Inch
Working Pressure: 10000psi Connection: IF
Working Condition: Oil & Gas & H2S Service Working Temperature: Up To 425oF

Product Description

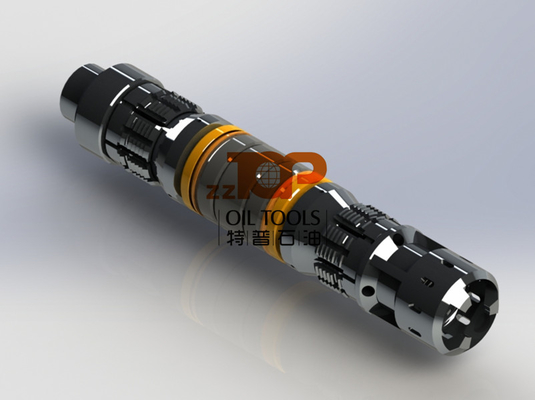

SVB Squeeze Packers For Cementing Operation / Drillable Bridge Plug


SVB is the Squeeze Packer used in  remedial cementing operations, also the SVB can be used as the drillable bridge plug. The squeeze packers are made of cast iron, brass, aluminum, and rubber to provide unsurpassed drillability. The Squeeze Packers can be set on electric wireline, slickline, coiled tubing, or jointed pipe with either a mechanical or hydraulic setting tool.


Features and Benefits

• The squeeze packer can control flow and pressure differential in either direction
• Allows pressure testing of workstring
• The squeeze packer can be run in quickly
• The squeeze packer can be applied in a wide range of casing grades
• Contains rugged brass mandrel, improved slips, and improved sliding valve seals
• Can be set on wireline, tubing, and drill pipe
• Can be set mechanically or hydraulically


Technical parameter of SVB Squeeze Packer



Applicable Casing size 41/2”9.5-13.5#43/4”16#5”20.3-24.2#51/2”36.4#
Max.Casing ID 106.2mm
Min Casing ID 99.3mm
Max.OD 93.0mm
Min.ID 22.1mm
Length 638mm
Max.Df ferential Pressure 10000psi
Working Temperature -29°C~120°C
Tension Sleeve Value 30000lbs/20000lbs
