16 Inch Hay Pulley Wireline Tools Floor Pulley

Product Details:
Place of Origin: China
Certification: ISO, API
Model Number: Hay Pulley
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1-10000/set
Packaging Details: Pollywood
Delivery Time: 30-50 days
Payment Terms: L/C, T/T, D/P
Supply Ability: 10 set/month

Detail Information

Product: Hay Pulley Material: Alloy Steel
Size: 10 Inch - 16 Inch Application: Oil & Gas Well Downhole Operation
Wire Range: 0.092" - 0.187" Working Condition: Oil & Gas & H2S Service
Usage: Wireline Operation /Slick Line Service Delivery: 20-30 Days
High Light:

10 INCH Wireline Tools


Wireline Tools Floor Pulley


16 inch hay pulley

Product Description

Wireline Hay Pulley / Floor Pulley For Wireline Pressure Control


The Hay Pulley is applied for wireline service and used to control and manipulate the direction of the wireline from a horizontal positon to a vertical position en route to the stuffing box from the wireline unit. This tool is generally positioned at the wellhead on the lubricator to reduce side pull force and to avoid lateral loading of the lubricator during heavy jarring operations.


Usage of pulley

1. After connecting the ground pulley to the tensile table (referred to), connect with the rope in the wellhead. According to the length of the winch roller position, the wire is as parallel to the roller plane (i.e., the wire angle of the steel wire from the top of the anti-spray tube is approximately 90 degrees; If the ground pulley is lifted, when the load direction of the wire or cable (wire rope) is changed, the pulley is pulled directly with the hook;
2, the handle on the hoisting block, the positioning pin is retracted, and the sub-plate is rotated, and the pulley groove on the pulley is exposed;
3, steel wire is loaded from the external anti-hopping block;
4, the sub-board is rotated in the clockwise direction, and then the positioning pin is returned to the original position.


Specifcation of Hay Pulley



Nominal Size Wire range Safety!load
10” 0.092"~0.125" 2.5t
16" 0.092~0.187 2.5t~5t

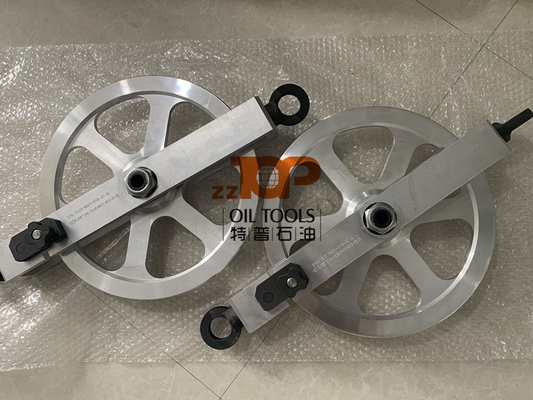

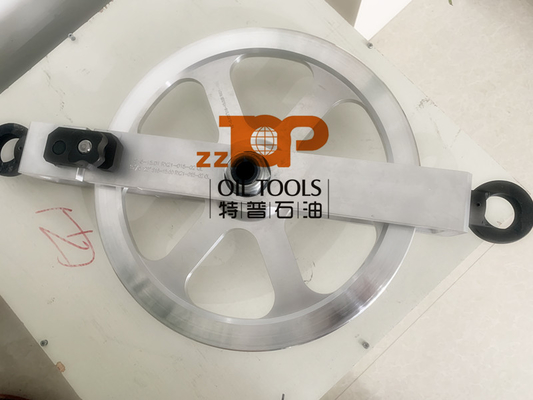

16 Inch Hay Pulley Wireline Tools Floor Pulley 0  16 Inch Hay Pulley Wireline Tools Floor Pulley 1
