Pump Through Rupture Disc Circulating Valve PT-RD Downhole Safety Valve
Contact Person : LEE
Phone Number : 86-13659253658
WhatsApp : +8613659253658
| Minimum Order Quantity : | 1 set | Price : | USD 1-10000/set |
|---|---|---|---|
| Packaging Details : | Pollywood | Delivery Time : | 30-50 days |
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 10 set/month |
| Place of Origin: | China | Brand Name: | ZZ TOP OIL TOOLS |
|---|---|---|---|
| Certification: | ISO, API | Model Number: | 5" RD Safety Circulating Valve |
|
Detail Information |
|||
| Product: | RD Safety Circulating Valve | Type: | APR Tools |
|---|---|---|---|
| Size: | 5 Inch | Working Pressure: | 15000psi |
| Application: | Oil Well Downhole Testing Service | Connection: | IF, EUE , CAS |
| Working Condition: | Oil & Gas & H2S Service | Working Temperature: | Up To 425oF |
| High Light: | Disc circulating valve,Safety circulating valve,15000psi drill stem testing tools |
||
Product Description

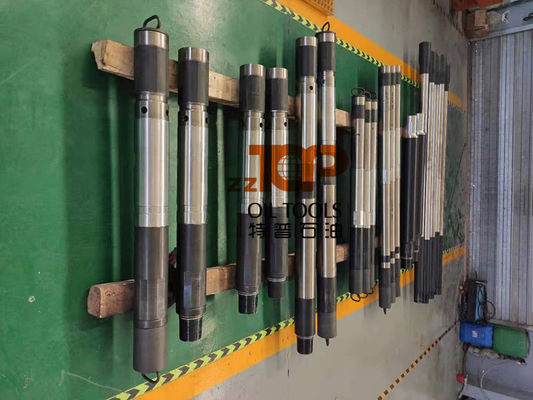

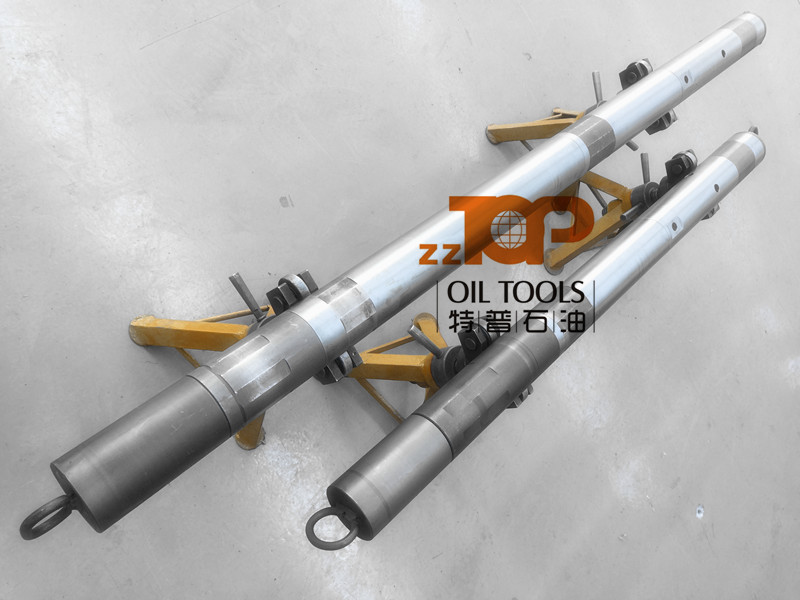

Rupture Disc Safety Circulating Valve For Drill Stem Testing Service
The Rupture Disk Safety Circulating Valve / RD Safety Circulating Valve functions as both a safety valve and circulating valve. The tool functions as a safety valve when the annulus pressure reaches a predetermined value. At that pressure, the valve isolates the workstring below the tool and establishes communication between the annulus and the workstring above the tool. This tool converts into a circulating valve when the ball valve section is removed and attach a lower adapter called RD Circulating Valve.The valve can not be open when closed in downhole operation.
RD Circulating valve is the same as RD Safety circulating valve except short of ball valve section, the annulus pressure made RD burst and the pressure goes into RD hole and push circulating mandrel forward, then open the circulating ports.
Technical parameter of Recloseable Circulating Valve
| 1 | ID | 57mm |
| 2 | Length | 1843mm(IF BxP) |
| 3 | Working Pressure | 105Mpa |
| 4 | Tensile Strength | 2337KN |
| 5 | Internal Pressure Strength | 140Mpa |
| 6 | External Pressure Strength | 130Mpa |
| 7 | Torque Strength | 61KN.m |
| 8 | Service | Mud,Crude Oil,Natural gas NACE MR0175,Above 175F |
| 9 | Working Temperature | -29oC~204oC |
| 10 | Connection Thread | 3 1/2” IF BXP 3 7/8” CAS BXP |
